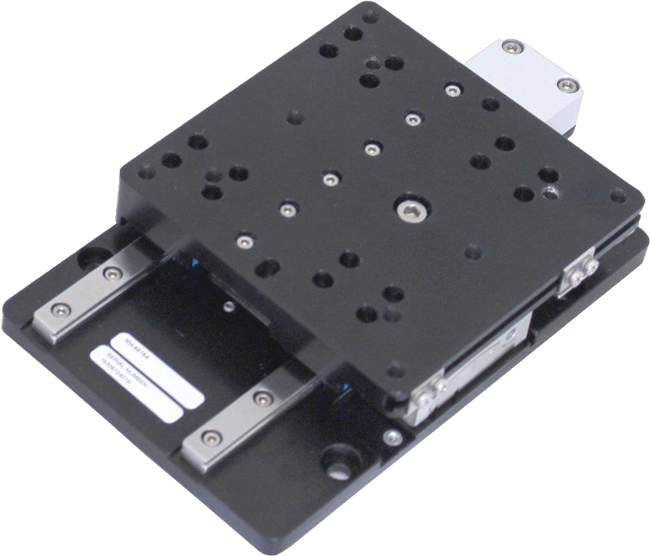

mSR 80 Ironcore Linear Motor Driven, Dual Square Rail Guided, Linear Positioner
Brand: Parker HannifinThe mSR 80 is a miniature, high precision linear positioner which uses dual precision grade square rails for its guidance, and an ironcore linear motor for its drive.
The mSR 80 has an extremely compact design – measuring just 80 mm in width by 25 mm in height.
Captured within this miniature profile is the stage's guidance, linear motor, linear encoder, as well as adjustable limit and home sensors – making this an ideal positioner for space restricted applications in the life sciences or optics market.
The mSR 80 can easily be configured into multi-axis configurations.
Features- Frame width of 80 mm
- Five standard strokes of 25, 35, 50, 100, and 150 mm
- Positional repeatability of +/- 0.1 micron
- Integrated magnetic (1.0 micron), optical (1.0, 0.1, 0.01 micron), or an analog Sine/Cosine encoder options
- Maximum speeds of 2000 mm/sec
- Optional 4 or 8 pole linear motor drivetrain options
- Maximum payload 78 N
- Maximum thrust of 24 N
- Integrated and adjustable home and limit sensing
- Standard multi-axis configurations available
- Laser test data with slope correction values with each precision grade stage
Specifications
Brand
Additional Protection Option
- None
Approvals & Certifications
- Cleanroom (Class 1000 - Standard/Class 10 - Optional)
Axial Load Capacity (Lbs)
- 5.4
Axial Load Capacity (N)
- 24
Bearing Type
- Dual Square Rail
Bi-Directional Repeatability (Thou)
- 0.00393
Bi-Directional Repeatability (UM)
- 0.1
Drive Type
- Linear Motor
Duty Cycle %
- 100
Inverted Load Capacity (Lbs)
- 17.6
Inverted Load Capacity (N)
- 78.5
IP Protection Rating
- IP00
Linear Feedback Device
- Yes (Encoder: 0.01 μm, 0.1 μm or 1 μm Resolution Optical Incremental / 1 μm Resolution Magnetic / 1 V Peak-to-Peak Sine / Cosine)
Maximum Acceleration (Inch/S2)
- 1158
Maximum Acceleration (m/S2)
- 29.4
Maximum Speed (inch/sec)
- 78.74
Maximum Speed (m/sec)
- 2000
Maximum Stroke (inch)
- 5.9
Maximum Stroke (mm)
- 150
Normal Load Capacity (Lbs)
- 17.6
Normal Load Capacity (N)
- 78.5
Profile Width (mm)
- 80
Screw Lead Options
- Ironcore Servo Motor
Series
- mSR
- Life Science
- Electronics Manufacturing
- Semiconductor
- Optics
- Cleanroom
- Metrology
- Move/Transport
- Focusing
