CSE Diaphragm Seal Gauge
Brand: BudenbergThe CSE is a high integrity Diaphragm Seal Gauge designed to withstand the high pressures and temperatures normally associated with Chemical and Oil / Gas applications.

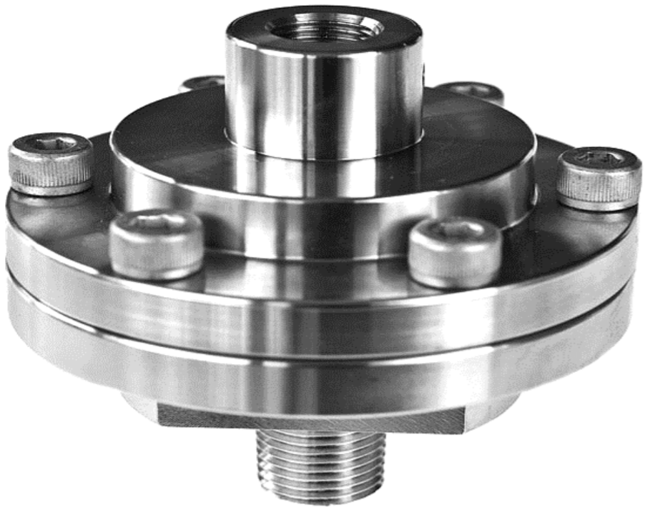

The CSE has a diaphragm clamped between the upper and lower chambers thereby optimising the use of exotic materials for the wetted parts.
A unique feature of the unit is the ability to set the diaphragm to lock off at set pressures thereby protecting the unit from major overload conditions up to and including psi: 5,802 (kPa: 40,000, bar: 400). This eliminates the need for expensive overload protection valves.
Available in a wide range of options including a choice of dial sizes, connections, materials, filling fluids and options to permit operation at temperatures in excess of 440° C (824° F).
Specifications
Brand
Approvals & Certifications
- FDA
- PED
BSP Connection
- 1" BSP Male for CSE
- 1/2" BSP Female for CSI
- 1/2" BSP Male for CSE
- 1/4" BSP Female for CSI
- 1/4" BSP Male for CSE
- 3/4" BSP Female for CSI
- 3/4" BSP Male for CSE
- 3/8" BSP Female for CSI
- 3/8" BSP Male for CSE
Fill Material
- Mineral Oil, Silicon HT Oil, Medicinal Paraffin, Glycerine, Syltherm XLT & 400
NPT Connection
- 1" NPT Male for CSE
- 1/2" NPT Female for CSI
- 1/2" NPT Male for CSE
- 1/4" NPT Female for CSI
- 1/4" NPT Male for CSE
- 3/4" NPT Female for CSI
- 3/4" NPT Male for CSE
- 3/8" NPT Female for CSI
- 3/8" NPT Male for CSE
Dial Size
- 63 mm, 100 mm & 150 mm Standard
Accuracy
- 1.0 % as EN 837
Material of Construction
- Standard 316L Stainless Steel
- Options (CSE-R): Hastelloy C-276, Titanium, tantalum or Monel 400
Operating Temperature
- -20° to +100° C
- Max 450° C
- Oil and Gas
- Chemical
- Petrochemical
- Water and Waste Water
- Food and Beverage
- Pharmaceutical
