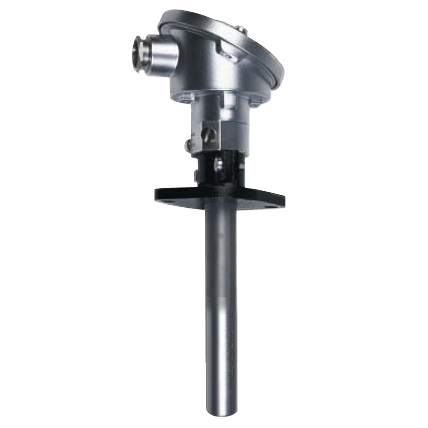

TTD Thermocouple
Brand: KOBOLD Instruments, Inc
The screw-in and immersion thermocouples comprise a rugged installation fitting, made of steel, stainless steel or ceramic with a thread, rigid or sliding flange connection, a connection head made of die cast Aluminum and removable measuring insert.
The measuring insert can be replaced without emptying the process.
Thermocouples according to IEC 584-1, category 2 are fitted in the measuring insert as standard.
These sensors are available as single or double thermocouples. The connection head is suitable for ambient temperatures to 85° C. The thermocouples are available with a transmitter as an option.
Specifications
Brand
Accuracy
- Class 2
Ambient Temperature Range
- Maximum
BSP Connection
- G 1/2" Male
Environmental Protection
- IP54
Output
- 4-20 mA
Sensor / Probe Type
- J Thermocouple
- K Thermocouple
Span - Minimum
- 50 K
Supply Voltage
- 10-38 Vdc
Temperature Range
- -200° to 1,150° C (-328° to 2,102° F)
