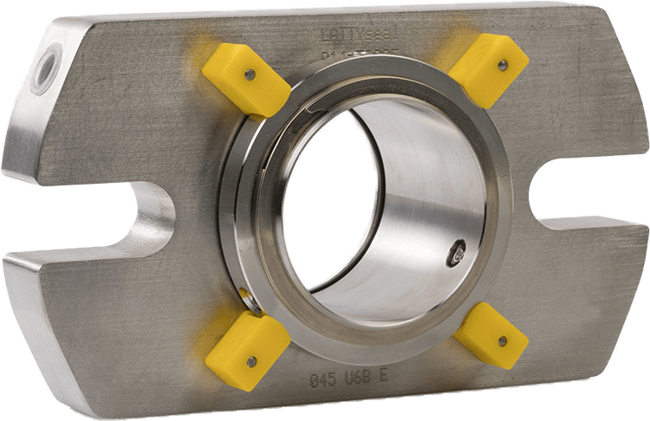

CARTseal B 22812 Stationary Mechanical Seal
Brand: Latty International S.A.The new mechanical seal CARTseal B 22812 is approved ATEX. Easy installation on all types of equipment (even in confined spaces) thanks to two wide slots in the flange.
Stationary springs are protected as they are located outside the pumped fluid and therefore not prone to clogging.
Mechanical seal with flush (feeding device for the faces) Factory-preset mechanical seal, there is no setting required during installation.
No repositioning of the setting clamps prior to starting up. Simple, fast and easy installation. Imperial version available.
Features- Stationary mechanical seal allowing high rotation speed even with shafts with slight angular offset.
- Easy installation on all types of equipment (even in confined spaces) thanks to two wide slots in the flange.
- Stationary springs are protected as they are located outside the pumped fluid and therefore not prone to clogging.
- Mechanical seal with flush (feeding device for the faces)
- Factory-preset mechanical seal, there is no setting required during installation.
- No repositioning of the setting clamps prior to starting up.
- Simple, fast and easy installation.
Specifications
Brand
Operating Pressure
- 0 to 25 bar
Operating Temperature
- -20° to 180° C
Speed
- 15 m/s
Certification
- ATEX Zone 1 and 2
- Temperature Class T3
Friction Faces
- U6 B V: Silicon Carbide
- Resin-Impregnated Carbon
- FKM O-ring or U6 U6 V: Silicon Carbide
- Silicon Carbide
- FKM O-ring (on request)
Fluids
- All Corrosive, Abrasive and Slightly Clogging Fluids
Material
- Centrifugal Pumps
- Volumetric Pumps
- Vertical and Horizontal Agitators
- Mixers
- Chemical
- Pharmaceutical
- Car industry
- Food industry
- Boilers
- Paper Mills
- Water Distribution
