FS1A/FS1V Free Range Type Potentiometer Converter
Brand: Yokogawa Electric Corporation

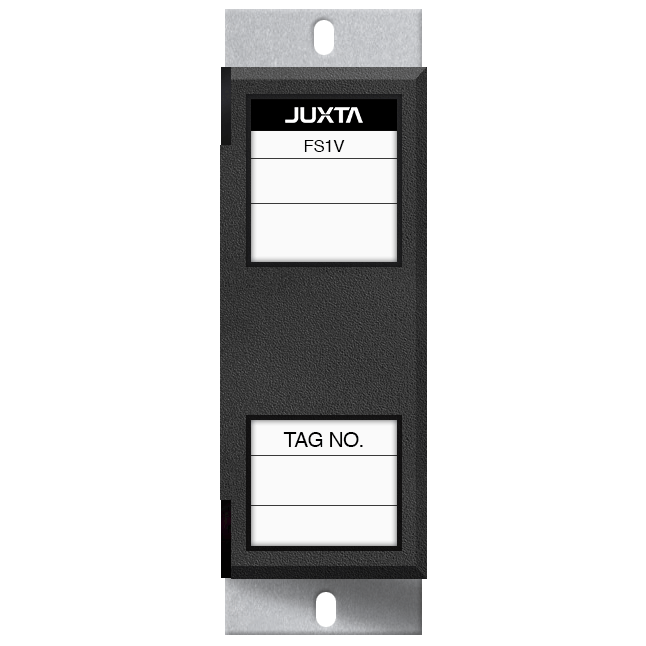

The FS1A/FS1V is a compact, front terminal connection type potentiometer converter that is used in combination with an instrument such as a control valve which outputs the change in resistance of potentiometer.
It converts the change in resistance into isolated DC current or DC voltage signals.
Features- Input Range Setting, Burnout Setting, I/O Monitoring, and Zero/Span Adjustment can be Made using the Optional Parameter Setting Tool (VJ77) or Handy Terminal (JHT200)
Specifications
Accuracy
- ± 0.1 % of Span
Burn-Out
- Downscale
- Off
- Time: 60 seconds or Less
- Upscale
Consumption
- 50 mA - Current Consumption (FS1V)
- 65 mA at 24 Vdc - Current Consumption (FS1A)
Current
- 0.1 µA - Burn-Out Detection Current
- 1-24 mA DC - Span
Electrical Connectors
- M4 Screw Terminal
Enclosure, Body Material
- ABS Resin
Humidity
- 5 to 90 % RH, Non-Condensing
Input Signal
- Potentiometer Resistance Change (3-Wire Typical)
Insulation Resistance
- 100 MΩ or more at 500 Vdc - between Input & Output, Output & Power Supply, & Input & Power Supply
Mounting
- DIN Rail Mounting
- Rack-Mounted
- Wall Mounted
Operating Temperature
- 0° to 50° C (32° to 122° F)
Output
- 0-24 mA DC
- -10 to 10 Vdc
Power Supply
- 24 Vdc ± 10 % (Percentage Ripple is 5 % Peak-to-Peak or Less) - Power Supply Voltage
Power Supply Effect
- ± 0.1 % of Span or Less - Effect of Power Supply Voltage Fluctuations
Resistance
- ± 0.1 % or Less for a Resistance Change of 10 ohms / Leadwire - Effect of Leadwire Resistance Change
- 100 to 30,000 ohms - Total Resistance
- 150 ohms or Less Per Wire - Allowable Leadwire Resistance
- 2 to 250 kΩ or more - Allowable Load Resistance for DC Voltage Output
- 750 to 15,000 ohms or Less - Allowable Load Resistance for DC Current Output
- 80 to 2,000 ohms (50 % of the Total Resistance or more) - Measuring Span
Response Time
- 200 ms, 63 % Response (10 to 90 %)
Span & Zero Adjustments
- ± 10 % of Span - Output Adjustment
Span Effect
- 10 mV-20 V
- 1-24 mA DC
Supply Voltage
- 1,500 Vac/minute - Withstand Voltage between Input & (Output & Power Supply)
- 10 mV-20 V - Span (DC)
- 500 Vac/minute - Withstand Voltage between Output & Power Supply
Temperature Effect
- ± 0.2 % of Span or Less - Effect of Ambient Temperature Change for a Temperature Change of 10° C (18° F)
Zero Offset
- 0 to 200 % - Zero Elevation (Output Current Signal)
- -100 to 200 % - Zero Elevation (Output Voltage Signal)
