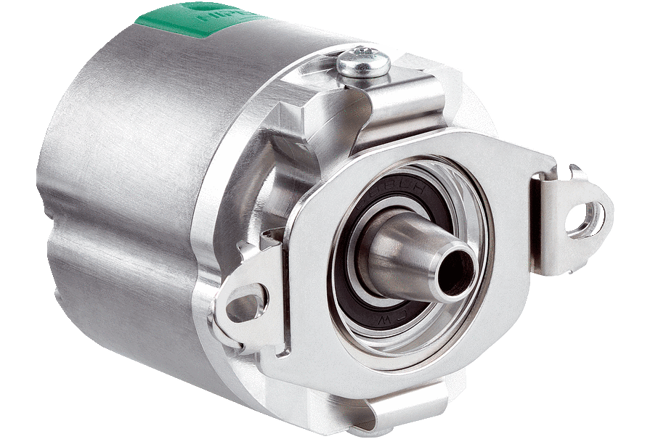

Motor Feedback Systems Rotary HIPERFACE DSL®, EDS EDM35.png

EDS/EDM35 Motor Feedback Systems Rotary HIPERFACE DSL®

Brand: Sick AG
Add Product to My Catalog

The digital HIPERFACE DSL® interface has played a significant role in shaping drive technology over recent years. EDS/EDM35 motor feedback systems come with HIPERFACE DSL® and ensure outstanding performance for high-precision servo drives used in safety applications.

Fitted with a standardized mechanical interface, they are highly flexible, particularly when used in conjunction with EES/EEM37 motor feedback systems. EDS/EDM35 systems have a newly developed optical scanning system with dual-channel scanning and are highly resistant to shocks and vibrations.

Features such as safe singleturn absolute positioning and electronic type labels EDS/EDM35 make them the ideal solution for a wide range of applications, for example in the packaging and machine tool industries.

At a glance
  • Optical motor feedback system with HIPERFACE DSL®
  • Up to 24-bit resolution per revolution and 4,096 revolutions with the multiturn system
  • Certified according to SIL2 and PL d
  • Status monitoring and mission time histogram; temperature, speed, and revolution data are stored throughout the service life of the device
Features
  • A single model with different performance levels allows system suppliers to implement a variety of applications using only one type of encoder
  • EDS/EDM35 motor feedback systems are ideal for use in high-precision, dynamic applications
  • The 13-bit safe absolute singleturn resolution meets the requirements of tomorrow’s safety servo drives

1 - 1 of 1 Part Numbers
1107310
1107310
  • Connection Type - Female Connector, 8-pin
  • Measuring Range - ± 50 g
  • Type - SHUB10-0ZA87010
1 - 1 of 1 Part Numbers

Specifications

Brand

Type

  • For Integration

Model

  • Absolute Singleturn
  • Absolute Multiturn

Communication Interface

  • HIPERFACE DSL

Resolution Per Revolution

  • 20-bit
  • 24-bit

Mechanical Design

  • Tapered Shaft

Connection Type

  • Male Connector, 4-Pin
  • Female Connector, 8-Pin
  • Male Connector, 8-Pin

Available Memory Area

  • 8,192 Byte

Measuring Range

  • ± 50 g

Bandwidth

  • 10 kHz

Resolution

  • 13-bit

Certifications & Approvals

  • CE

  • Packaging Industry
  • Machine Tools
