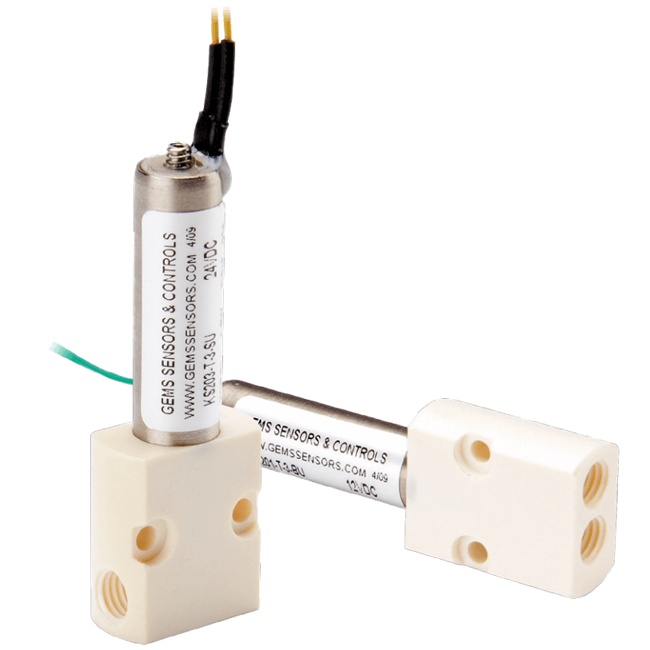

KS Series Solenoid Valve
Brand: Gems Sensors, IncKS Series isolation valves are 2-way, Normally Closed (NC) valves featuring 0.38" (10 mm) solenoid shell diameters.
The isolation valve design ensures that the only wetted parts are the valve diaphragm and the valve body.
For exceptional chemical compatibility the KS Series utilizes PEEK or PPS bodies, with a choice of diaphragm materials to meet your specific needs.
Features- 2-Way, Normally Closed
- MOPD: 20 PSIG (1.38 bar)
- Cv Range: 0.008 to 0.015
- 1.8 Watts
Specifications
Brand
Coil Voltage
- 12 Vdc
- 24 Vdc
Diaphragm Material
- EPDM (Ethylene Propylene Diene M)
- FFKM
- PTFE (Polytetrafluoroethylene)
Electrical - Free Leads
- 28 AWG Lead Wires 24" (609.6 mm) Long, PTFE-Coated
Enclosure, Body Material
- PEEK (Polyaryletheretherketone)
- PPS (Polyphenylene Sulfide)
Flow Rate
- 0.008 to 0.015 Cv
Gasket Material
- Manifold Mount Body: FFKM
Maximum Opening Pressure Differential
- psig: 20 (kPa: 138, bar: 1.38)
Metric Connection
- M6 x 1
NPT Connection
- 1/8" NPT
Orifice Size
- 0.032"
- 0.054"
Power
- 1.8 W
UNF/UNC Connection
- 1/4"-28 UNF
- 10-32 UNF
- 5/16"-24 UNF
Valve Type
- 2-Way, Normally Closed (NC)
