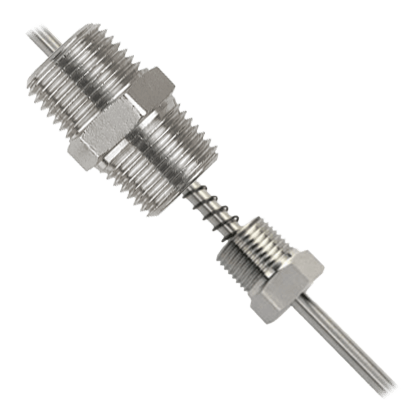

Spring-Loaded Fitting
Brand: United Electric Controls Ltd- Process connection:
- 1/2" NPT
- 3/4" NPT
- Conduit connection:
- 1/2" NPT
- 3/4" NPT
- Sensor diameter
- 3/16"
- 1/4"
1 - 8 of 8 Part Numbers
PF13
- Fitting - Standard, Non-Sealed
- Process / Conduit Connection - 1/2” NPT / 1/2” NPT
- Sensor Diameter - 3/16”
PF14
- Fitting - Standard, Non-Sealed
- Process / Conduit Connection - 1/2” NPT / 1/2” NPT
- Sensor Diameter - 1/4”
PF17
- Fitting - Standard, Non-Sealed
- Process / Conduit Connection - 3/4” NPT / 3/4” NPT
- Sensor Diameter - 3/16”
PF18
- Fitting - Standard, Non-Sealed
- Process / Conduit Connection - 3/4” NPT / 3/4” NPT
- Sensor Diameter - 1/4”
PF21
- Fitting - O-Ring Sealed
- Process / Conduit Connection - 1/2” NPT / 1/2” NPT
- Sensor Diameter - 3/16”
PF22
- Fitting - O-Ring Sealed
- Process / Conduit Connection - 1/2” NPT / 1/2” NPT
- Sensor Diameter - 1/4”
PF25
- Fitting - O-Ring Sealed
- Process / Conduit Connection - 3/4” NPT / 3/4” NPT
- Sensor Diameter - 3/16”
PF26
- Fitting - O-Ring Sealed
- Process / Conduit Connection - 3/4” NPT / 3/4” NPT
- Sensor Diameter - 1/4”
1 - 8 of 8 Part Numbers
Specifications
Conduit Connection
- 1/2" NPT Male
- 3/4" NPT Male
NPT Connection
- 1/2" NPT Male
- 3/4" NPT Male
O-Ring Material
- Buna-N
Pressure Rating
- Maximum
Sensor, Probe Diameter
- Sensor: 1/4" (6.35 mm)
- Sensor: 3/16" (4.76 mm)
Temperature Range
- Buna-N: -23° to 93° C (-10° to 200° F)
