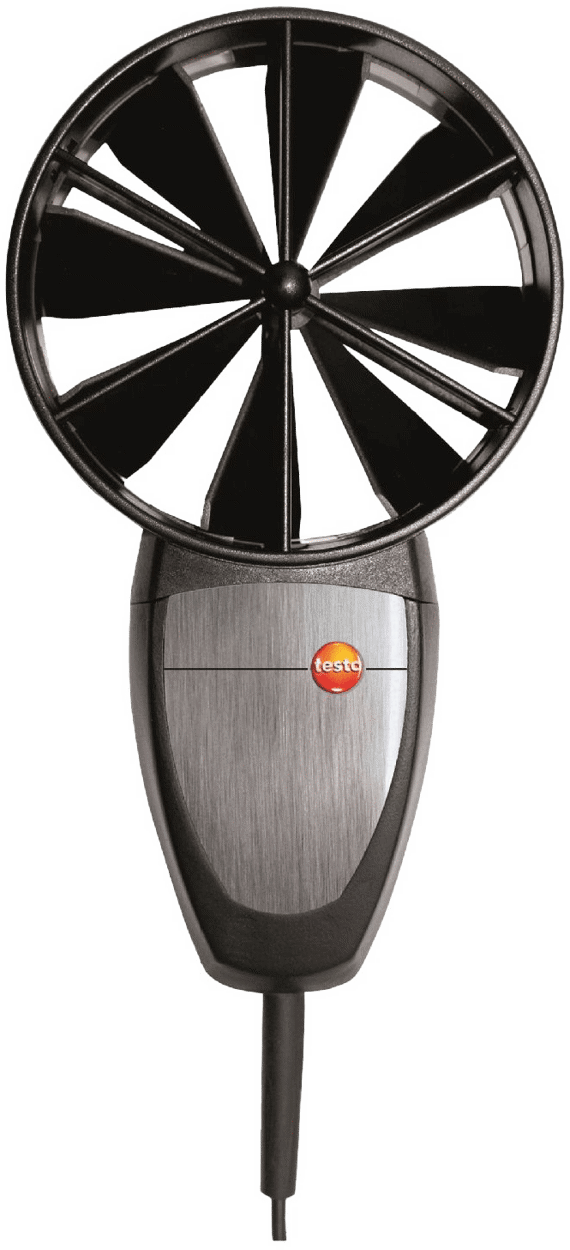

Vane Probe for Funnel Sets
Brand: TestoUse the 100 mm vane/temperature probe to determine flow velocity or volume flow at ventilation outlets.
Integrated temperature measurement enables the vane anemometer to measure temperatures up to +50°C.
For convenient, accurate measurements at plate outlets and ventilation grilles, we recommend that you use the vane/temperature probe in conjunction with the Testo 435 measuring instrument and the Testovent 417 funnel set (both optionally available).
This guarantees simple testing of incoming/outgoing air – such as in the controlled ventilation of living spaces.
If you add in the Testovent 417 volume flow straightener (optional), you can achieve an impressively high level of precision when carrying out measurements at swirl outlets.
Features- Vane diameter: 100 mm
- Integrated temperature measurement up to +50°C
- Flow measuring range +0.3 to +20 m/s
Specifications
Brand
Delivery Scope
- Vane/Temperature Probe (Ø 100 mm) with Fixed Cable 1.8 m
Temperature - NTC
- Measuring Range: 32° to 122° F / 0° to +50° C
- Accuracy: ± 0.9° F / ± 0.5° C
Velocity / Volume Flow
- Measuring Range: 59.1 to +3937 fpm / +0.3 to +20 m/s
- Accuracy: ± (19.7 fpm + 1.5 % of mv) / ± (0.1 m/s + 1.5 % of mv)
Diameter
- 3.937 in. / 100 mm
