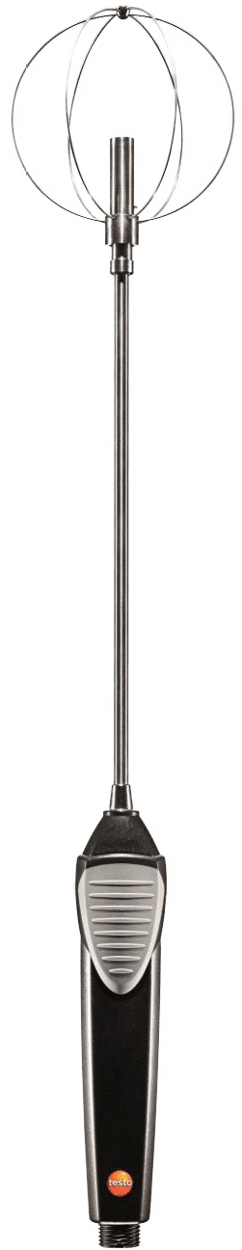

Comfort Probe for Turbulence Measurement
Brand: TestoDraught is the most common cause of complaints about indoor climate. Use the comfort probe to determine turbulence.
Turbulence corresponds to the extent of fluctuations in air velocity over time. It is needed to calculate the draught risk.
The probe enables you to determine air velocity and draught risk in accordance with EN 13779.
The probe can also measure temperature and ambient pressure at the same time.
Intelligent Calibration Concept
The probe offers maximum digital measurement reliability. The digital probe allows readings to be processed directly in the probe.
This technology eliminates instrument measurement uncertainty. The probe can be sent in for calibration on its own (without the measuring instrument).
Calculating the determined calibration data in the probe generates a zero-error display.
Features- Turbulence measurement in accordance with EN 13779
- Determination of air velocity and draught risk
- Integrated temperature and ambient pressure measurement
- Intelligent calibration concept
Specifications
Brand
Delivery Scope
- Comfort Probe for Turbulence Measurement
- Note: You need a plug-in head cable (0430 0100) for this probe
Length Probe
- 330 mm
Probe Head Diameter
- 3.543 in. / 90 mm
Standards
- EN 13779
Temperature - NTC
- Measuring Range: 32.0° to 122.0° F / 0° to +50° C
- Accuracy: ± 0.5° C
- Resolution: 0.1° C
Velocity - Hot Wire
- Measuring Range: 0 to +5 m/s
- Accuracy: ± (0.03 m/s +4 % of measurement value)
- Resolution: 0.01 m/s
Absolute Pressure
- Measuring Range: +700 to +1100 hPa
- Accuracy: ± 3 hPa
- Resolution: 0.1 hPa
