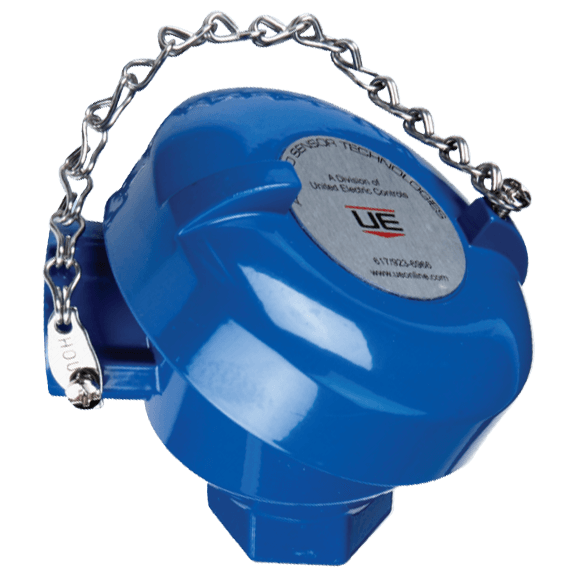

NEMA 4 & 4X Replacement Head
Brand: United Electric Controls Ltd
- Head Material:
- Cast aluminum - Gasketed screw cover
- Cast iron - Gasketed screw cover
- Cast aluminum - Flip-top cover
- 316 Stainless steel - Gasketed screw cover
- Black polypropylene - Gasketed screw cover
- White polypropylene - Gasketed screw cover
- Nylon - Gasketed screw cover
- Process connection:
- 1/2"
- 3/4"
- Conduit connection:
- 1/2"
- 3/4"
1 - 12 of 18 Part Numbers
PH
- Head Material - Cast Aluminum - NEMA 4, Gasketed Screw Cover
- Process Connection - 3/4”
PH01
- Head Material - Cast Aluminum - NEMA 4, Gasketed Screw Cover
- Process Connection - 1/2”
- Conduit Connection - 1/2”
PH01E
- Head Material - Epoxy Coated Cast Aluminum - NEMA 4X, Gasketed Screw Cover
- Process Connection - 1/2”
- Conduit Connection - 1/2”
PH02
- Head Material - Cast Aluminum - NEMA 4, Gasketed Screw Cover
- Process Connection - 1/2”
- Conduit Connection - 3/4”
PH02E
- Head Material - Epoxy Coated Cast Aluminum - NEMA 4X, Gasketed Screw Cover
- Process Connection - 1/2”
- Conduit Connection - 3/4”
PH03
- Head Material - Cast Aluminum - NEMA 4, Gasketed Screw Cover
- Process Connection - 3/4”
- Conduit Connection - 3/4”
PH03E
- Head Material - Epoxy Coated Cast Aluminum - NEMA 4X, Gasketed Screw Cover
- Process Connection - 3/4”
- Conduit Connection - 3/4”
PH04
- Head Material - Cast Iron - NEMA 4, Gasketed Screw Cover
- Process Connection - 1/2”
- Conduit Connection - 1/2”
PH04E
- Head Material - Epoxy Coated Iron - NEMA 4X, Gasketed Screw Cover
- Process Connection - 1/2”
- Conduit Connection - 1/2”
PH05
- Head Material - Cast Iron - NEMA 4, Gasketed Screw Cover
- Process Connection - 1/2”
- Conduit Connection - 3/4”
PH05E
- Head Material - Epoxy Coated Iron - NEMA 4X, Gasketed Screw Cover
- Process Connection - 1/2”
- Conduit Connection - 3/4”
PH06
- Head Material - Cast Iron - NEMA 4, Gasketed Screw Cover
- Process Connection - 3/4”
- Conduit Connection - 3/4”
1 - 12 of 18 Part Numbers
Specifications
Conduit Connection
- 1/2" Conduit
- 3/4" Conduit
Enclosure, Body Material
- Ceramic Terminal Block
- Terminal Head: 316 Stainless Steel
- Terminal Head: Cast or Epoxy-Coated Aluminum
- Terminal Head: Cast or Epoxy-Coated Iron
- Terminal Head: Nylon
- Terminal Head: Polypropylene (White or Black)
Environmental Protection
- IP66
- NEMA 4
- NEMA 4X
Materials of Construction
- Chain: Stainless Steel
NPT Connection
- 1/2" NPT
- 3/4" NPT
