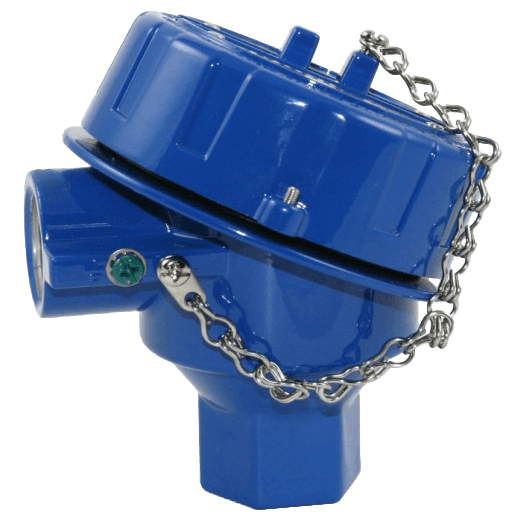

Explosion-Proof Replacement Head
Brand: United Electric Controls Ltd- Head Material:
- Cast aluminum - FM/CSA approved
- Stainless steel - FM/CSA approved
- Cast aluminum - ATEX approved
- Cast aluminum - UL/CSA approved
- Process connection:
- 1/2"
- 3/4"
- Conduit connection:
- 1/2"
- 3/4"
1 - 12 of 16 Part Numbers
PH
- Head Material - Cast Aluminum - FM/CSA Approved
- Process Connection - 3/4”
PH17
- Head Material - Cast Aluminum - UL/CSA Approved
- Process Connection - 1/2”
- Conduit Connection - 1/2”
PH17E
- Head Material - Epoxy Coated Cast Aluminum - UL/CSA Approved
- Process Connection - 1/2”
- Conduit Connection - 1/2”
PH18
- Head Material - Cast Aluminum - UL/CSA Approved
- Process Connection - 1/2”
- Conduit Connection - 3/4”
PH18E
- Head Material - Epoxy Coated Cast Aluminum - UL/CSA Approved
- Process Connection - 1/2”
- Conduit Connection - 3/4”
PH19
- Head Material - Cast Aluminum - UL/CSA Approved
- Process Connection - 3/4”
- Conduit Connection - 3/4”
PH19E
- Head Material - Epoxy Coated Cast Aluminum - UL/CSA Approved
- Process Connection - 3/4”
- Conduit Connection - 3/4”
PH50
- Head Material - Cast Aluminum - FM/CSA Approved
- Process Connection - 1/2”
- Conduit Connection - 1/2”
PH50E
- Head Material - Epoxy Coated Cast Aluminum - FM/CSA Approved
- Process Connection - 1/2”
- Conduit Connection - 1/2”
PH51
- Head Material - Cast Aluminum - FM/CSA Approved
- Process Connection - 1/2”
- Conduit Connection - 3/4”
PH51E
- Head Material - Epoxy Coated Cast Aluminum - FM/CSA Approved
- Process Connection - 1/2”
- Conduit Connection - 3/4”
PH52
- Head Material - Cast Aluminum - FM/CSA Approved
- Process Connection - 3/4”
- Conduit Connection - 3/4”
1 - 12 of 16 Part Numbers
Specifications
Approvals & Certifications
- ATEX EEx d IIC
- CSA Class I, Div. 1, Groups B, C, D, Class II, Groups E, F, G
- FM Class I, Div. 1, Groups B, C, D, Class II, Groups E, F, G
- UL Class I, Div. 1, Groups C, D, Class II, Groups E, F, G
Conduit Connection
- 1/2" Conduit
- 3/4" Conduit
Electrical Connectors
- 3 & 6-Post Ceramic Terminal Block
- 4-Post Plastic Terminal Strip
Enclosure, Body Material
- Head: Cast Aluminum with Epoxy Coated
- Terminal Head & Chain: Stainless Steel
Environmental Protection
- Explosion-proof
NPT Connection
- 1/2" NPT Female
- 3/4" NPT Female
