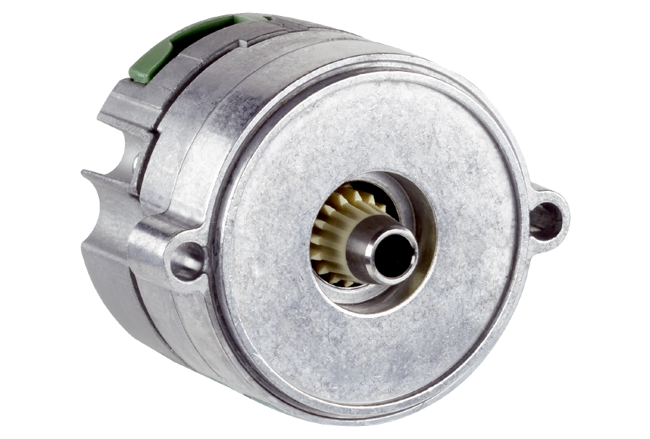

EES/EEM37 Motor Feedback Systems Rotary HIPERFACE DSL®
Brand: Sick AGThe digital HIPERFACE DSL® interface has played a significant role in shaping drive technology over recent years. The EES/EEM37 motor feedback systems featuring HIPERFACE DSL® will play an important role in drive technology and complete the lower power range within the SICK product portfolio.
Fitted with a standardized mechanical interface, they offer the utmost flexibility when used in conjunction with the EKS/EKM36 and EFS/EFM50 motor feedback systems.
EES/EEM37 feature a bearing-free structure and outstanding resistance to shock and vibrations. Additional features, such as secure singleturn absolute position or an electronic type label, make them the ideal solution for a wide range of applications, e.g., in the packaging industry or robotics.
At a glance
- Capacitive motor feedback system with HIPERFACE DSL®
- Up to 17-bit resolution per revolution and 4,096 revolutions with the multiturn system
- Certified according to SIL2 and PL d
- Status monitoring and mission time histogram; temperature, speed, and supply voltage are stored throughout the service life
- The compact design allows manufacturers of small and very small motors to reduce the lengths of their motors significantly
- The EES/EEM37 motor feedback systems are extremely well suited to use in harsh environments where resolvers were previously the only option
- The capacitive measurement principle with holistic sensing enables high axial and radial tolerances, simplifying the motor design
- Certification allows for easy integration into a safe drive system
1 - 12 of 14 Part Numbers
1067124
- Model - Absolute Multiturn
- Resolution Per Revolution - 15 bit
- Safety System - Yes
- Type - EEM37-2KF0A015A
1067125
- Model - Absolute Multiturn
- Resolution Per Revolution - 17 bit
- Safety System - Yes
- Type - EEM37-2KF0A017A
1067126
- Model - Absolute Singleturn
- Resolution Per Revolution - 15 bit
- Safety System - Yes
- Type - EES37-2KF0A015A
1067127
- Model - Absolute Singleturn
- Resolution Per Revolution - 17 bit
- Safety System - Yes
- Type - EES37-2KF0A017A
1068808
- Model - Absolute Multiturn
- Resolution Per Revolution - 15 bit
- Safety System - No
- Type - EEM37-0KF0A015A
1068809
- Model - Absolute Multiturn
- Resolution Per Revolution - 17 bit
- Safety System - No
- Type - EEM37-0KF0A017A
1068810
- Model - Absolute Singleturn
- Resolution Per Revolution - 15 bit
- Safety System - No
- Type - EES37-0KF0A015A
1068811
- Model - Absolute Singleturn
- Resolution Per Revolution - 17 bit
- Safety System - No
- Type - EES37-0KF0A017A
1086277
- Model - Absolute Multiturn
- Resolution Per Revolution - 15 bit
- Safety System - No
- Type - EEM37-0KF0B015A
1086279
- Model - Absolute Multiturn
- Resolution Per Revolution - 15 bit
- Safety System - Yes
- Type - EEM37-2KF0B015A
1086280
- Model - Absolute Multiturn
- Resolution Per Revolution - 17 bit
- Safety System - Yes
- Type - EEM37-2KF0B017A
1086281
- Model - Absolute Singleturn
- Resolution Per Revolution - 15 bit
- Safety System - No
- Type - EES37-0KF0B015A
1 - 12 of 14 Part Numbers
Specifications
Brand
Type
- For Integration
Model
- Absolute Singleturn
- Absolute Multiturn
Communication Interface
- HIPERFACE DSL
Resolution Per Revolution
- 15-bit
- 17-bit
Certifications & Approvals
- CE
- SIL 2
Connection Type
- Tapered Shaft
Mechanical Interface
- Male Connector, 4-Pin
Available Memory Area
- 8,192 Byte
- Packaging industry
- Robotics
