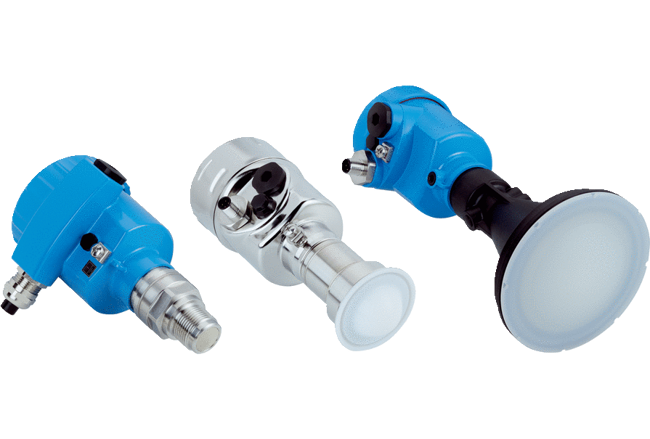

LFR SicWave Level Sensor
Brand: Sick AGThe LFR SicWave free-space radar makes continuous level measurements and works with all liquids.
It is highly resistant to external interference, foam or deposits.
Thanks to its non-contact 80 GHz radar technology, the LFR SicWave can be put into operation easily and is maintenance-free.
A wide range of options for antenna design, process connections and housing ensure ideal connection to any application.
HART communication and WPAN connection simplify service and diagnostics on the device and prepare it optimally for Industry 4.0 applications.
Features- One device for all continuous level measurements in liquids, simplifies spare part logistics
- Increased plant availability due to non-contact, continuous level measurement
- Quick to commission, saving time and costs
- Low costs and time expenditure as it is maintenance-free
- Rugged to external interference for high plant availability
- Insensitive to foam and deposits, preventing unexpected plant downtime
- Ex-certificates available
- Simplified service and diagnostic via HART or WPAN
Specifications
Brand
Certifications & Approvals
- ATEX
- CE
- IECEx
Enclosure Rating
- IP66
- IP67
- IP68
- IP69
Process Temperature
- -196° to 200° C
Process Pressure
- -1 to 25 bar
Measuring Range
- Up to 30 m
Housing Material
- Plastic
- Aluminum
- Stainless Steel
Accuracy
- Sensor Element: ≤ 1 mm
Media
- Fluid
