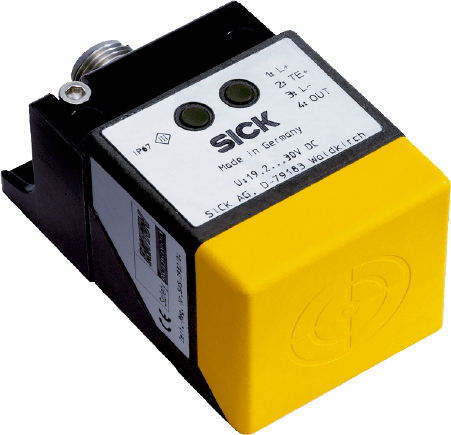

IN4000 Direct Non-Contact Safety Switch
Brand: Sick AGThe IN4000 Direct inductive safety switches are used for determining position and work on a non-contact basis.
These safety switches are actuated through metal (e.g., ST37 steel) so that no separate actuator is required.
The IN4000 Direct has two safety outputs (OSSD) and can be connected directly to a suitable safety-enhanced electronic evaluation system, such as a safe control solution.
Their non-contact operating principle enables simple adjustment and mounting as well as providing increased shock and vibration resistance.
Features- Direct connection to the safe control solution eliminates any additional wiring and reduces installation time
- Fast diagnostics via LED status indicator
- Long service life due to durable and low-maintenance design
- Just one safety switch in conjunction with a suitable safety module makes it possible to solve applications up to PL e (EN ISO 13849)
- The devices are easy to clean, making them suitable for contaminated areas or environments with strict hygiene standards
- Flexi Loop now enables a safe series connection with enhanced diagnostics capabilities and minimal wiring effort.
Specifications
Brand
Certifications & Approvals
- CE
- EAC
- cULus Listed
Safety Integrity Level
- SIL 3 (IEC 61508)
Performance Level
- PL e (EN ISO 13849)
Number of Safe Output
- 2
Connection Type
- Plug Connector, M12, 4-Pin
Enable Zone
- 15 mm
- 20 mm
- Position Determination of Hazardous Movements
- Position Monitoring in Areas With Limited Access
