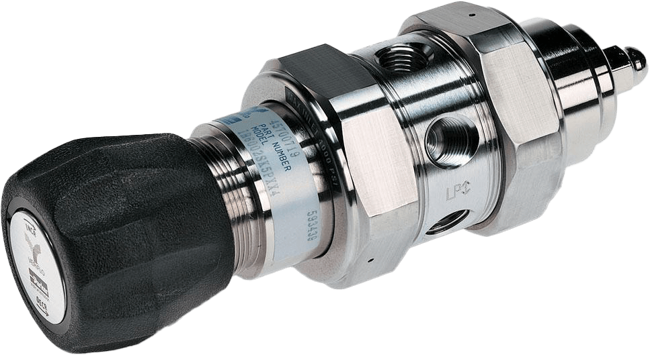

Two-Stage, General-Purpose Pressure Regulator - IR6000

Brand: Parker Hannifin
Add Product to My Catalog

The IR6000 Series Regulator provides two stages of pressure reducing regulation for optimum outlet pressure control and is the preferred choice where there is a potential for large inlet pressure changes.

Specifications

Brand

Body Material

  • Hastelloy C-22, Monel, (Hastelloy Trim is Standard with Hastelloy & Monel Bodies)
  • 316L Stainless Steel Standard

Knob Material

  • ABS (Standard) (Ambient Temp), Aluminum

Minimum Working Temperature

  • -40° C (-40° F)

Cap Material

  • Nickel-Plated Brass (Standard), Stainless Steel

Outlet Pressure

  • 1-30 psig (2 barg)
  • 2-60 psig (4 barg)
  • 3-100 psig (7 barg)
  • 5-150 psig (10 barg)
  • 10-250 psig (17 barg)
  • 0-10 psig (0.7 barg)

Poppet Material

  • Hastelloy C-276

Seat Options

  • PCTFE (Standard), Vespel, PEEK

Nut Material

  • Stainless Steel

O-Ring Material

  • FKM (Standard), PTFE

Internal Volume (cc)

  • 8.1 cc without Fittings

Supply Pressure Effect

  • 0.01 psig / 100 psig (0.0007 barg / 7 barg) @ 0.06 Cv
  • 0.02 psig / 100 psig (0.001 barg / 7 barg) @ 0.15 Cv
  • 0.01 psig / 100 psig (0.0007 barg / 7 barg) @ 0.02 Cv

Proof Pressure

  • 6,000 psig (414 barg)

Maximum Inlet Pressure

  • 1250 psi @ 0.15 Cv
  • 4000 psi @ 0.06 Cv & 0.02 Cv

Weight

  • 1.6 kg (3.5 lb)

External Leak Rate

  • Bubble Tight

Seat Retainer Material

  • 316L Stainless Steel Standard, Hastelloy C-22

Filter Material

  • 316 Stainless Steel Standard (60 um Mesh Screen, 10 um Filter), Hastelloy (On Hastelloy, Monel Bodies)

Maximum Working Temperature

  • 135° C (275° F) PEEK
  • 260° C (500° F) Vespel
  • 66° C (150° F) Self Relieving Option
  • 66° C (150° F) PCTFE

Diaphragm Material

  • Hastelloy C-22

Seat Material

  • PEEK

Back-Up Washer Material

  • 316 Stainless Steel Standard, Hastelloy C-276

Burst Pressure

  • 12,000 psig (828 barg)

Compression Member Material

  • Inconel 625

Internal Leak Rate

  • Bubble Tight

Poppet Spring Material

  • Inconel X-750

Flow Capacity (Cv)

  • Cv 0.06 (Standard), Cv 0.02, Cv 0.15
