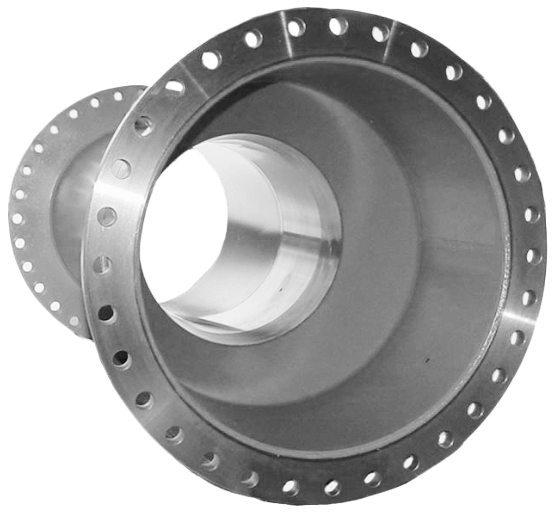

Liberty Venturi Meters LVM
Brand: Wyatt Engineering, LLC
The Liberty Venturi Meter (LVM) is a primary flow element that accurately and repeatably measures the flows of liquids or gases in closed, full-pipe conditions.
The LVM incorporates an efficient hydraulic shape with static pressure taps in the throat and inlet section.
The LVM can be provided with either flanged or plain end connections. Wyatt offers full body pressure vessels and insert-type flow elements.
Features- High Accuracy
- Reliable Operation
- Energy Efficient (Low Headloss)
- Flexible Design for a Variety of Applications
Specifications
Brand
Accuracy
- ± 0.50 % for standard meters without flow calibration
- ± 0.25 % for flow calibrated meters
Beta Ratio
- Liberty Venturi Meters are available with a wide range of diameter ratios (d/D). This provides users with an accurate flow measurement over a broad range of flow rates for a given line size and set of process conditions.
Temperature Range
- -425° to +1,200° F (-250° C and +650° C).
Pressure Range/End Connections
- Flanged end connections per ANSI B16.1 for 125 psig and 250 psig service are available. A variety of other end connections is also available including: Mechanical joint flanges per AWWA C110 or C111, as well as plain-end designs.
Piping Requirements
- Designed for full-pipe flow, LVM flowmeters may be mounted either horizontally or vertically. For recommended upstream piping, refer to the Wyatt Engineering LVM TECHspec.
- Power Plants
- Refineries
- Chemical Plants
- Cryogenic Processes
- Water and Sewage Plants
- Custody Transfer for Steam and Billing Measurements
