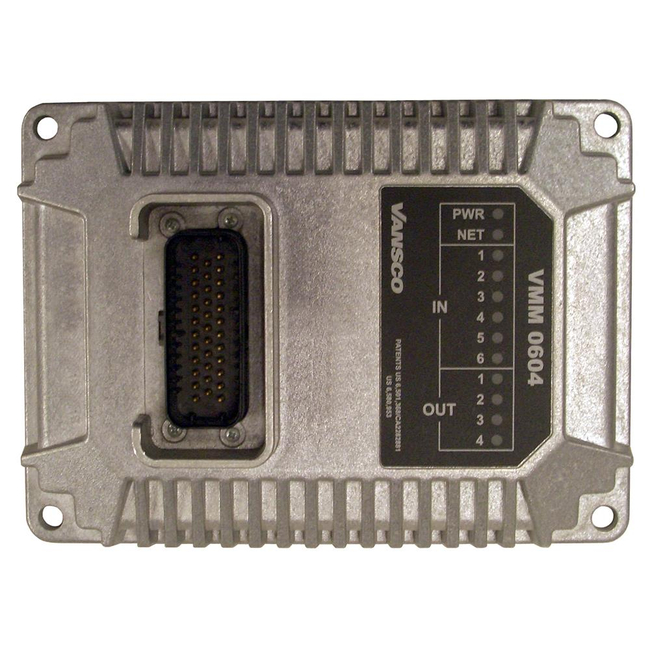

Parker Vansco Multiplexing Module - VMM0604
Brand: Parker HannifinParker's VMM0604 is a rugged unit that is a perfect controller for mobile equipment when used alone or with other VMM modules in a control system.
The VMM0604 communicates using J1939 protocol over a CAN bus connection.
Specifications
Brand
Approvals & Certifications
- 2004/108/EC
Communication Interface
- 1 x CAN (J1939)
Controller Type
- Master Controller
Electrical Connectors
- Amp Superseal
Housing Material
- Aluminum
IP Protection Rating
- 66
Markets
- Agriculture, Construction, Forestry, Material Handling, Specialty, Transportation
Maximum Working Temperature
- 85° C
Minimum Working Temperature
- -40° C
Number of Inputs
- 6
Number of Outputs
- 4
Output Current Rating (A)
- 2.5
Power Supply
- 12/24
Software
- VMMS Ladder Logic
Voltage (Vdc)
- 7-32
