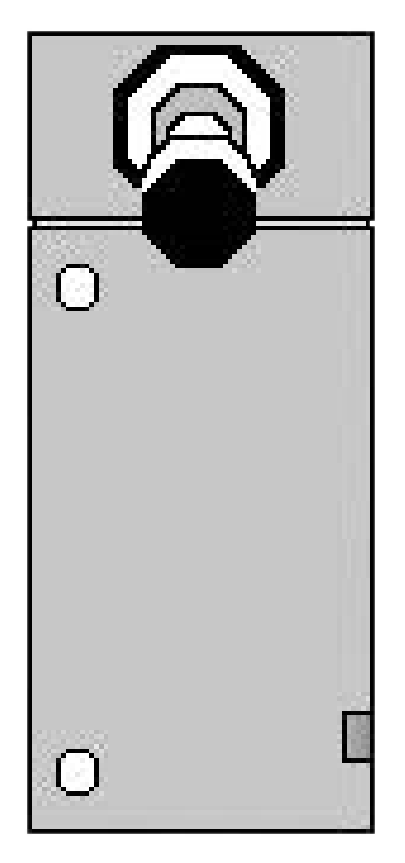

5/3-Way Valve Hand Lever w/ Safety Detent, 1/4 inch
Brand: Parker ORIGA CorporationSpecifications
Brand
Type
- Spool Valve
Mounting
- 2 Screws M6
Tube Connection
- Thread
Port Size
- 1/4
Weight (mass)
- 1.14 (.52)
Installation
- In any position
Ambient Temperature Range °F (°C)
- ϑmin 14° F (-10° C)
- ϑmax 140° F (+60° C)
- Note: When using below freezing point it is necessary to consult factory.
Medium Temperature Range °F (°C)
- ϑmin 14° F (-10° C)
- ϑmax 158° F (+70° C)
- Note: When using below freezing point it is necessary to consult factory
Medium
- Filtered compressed Air
Lubrication
- We recommend the use of mineral oil Type VG32 to ISO 3466
- With or without oil mist lubrication
Nominal Pressure (psi (bar))
- 87 (6)
Operating Pressure Range (psi (bar)) - Single Solenoid
- P min 0
- P max 145 (10)
Nominal Flow (Cv (I/min))
- RFG, RFB: 1.3 (1300)
- RFE: 1.0 (1000)
Air Pilot
- Direct
Stroke (in (mm))
- .256 (6.5)
Actuation Force (lbf (N))
- RFG, RFE, RFB: 3.37 (15)
- G,E,B: 2.25 (10)
