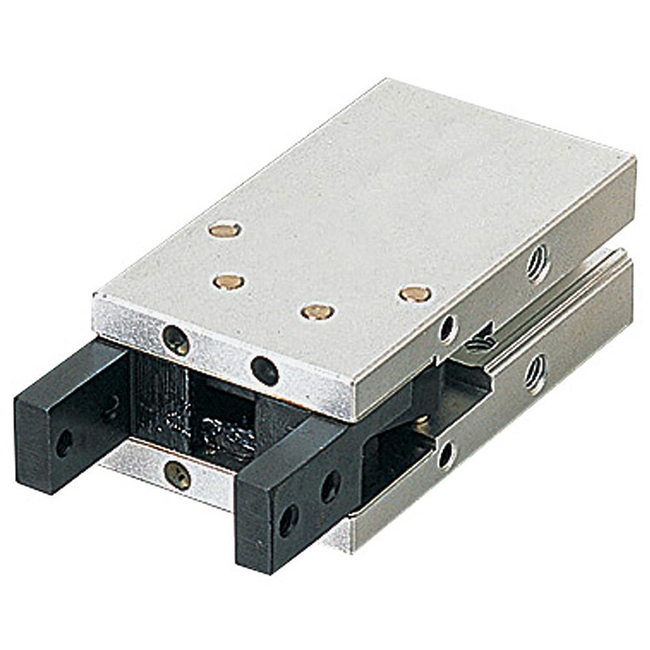

Parallel Gripper - P5GB Series (Economy)
Brand: Parker HannifinP5GB is an economical series of grippers. The parallel 2-finger design comes in a comprehensive range of bore sizes from 12 to 32 mm and magnetic pistons are standard options.
Specifications
Brand
Bearing Type
- N/A
Body Material
- Aluminum
Bore Size
- 12 - 32 mm
Corrosion Resistant Option
- N/A
Cushioning Mechanism
- N/A
Function
- Double-Acting
Gripper Jaw Material
- Steel
Input Supply Voltage
- N/A
IP Protection Rating
- N/A
Maximum Dynamic Compressive Force (N)
- N/A
Maximum Dynamic Tensile Force (N)
- N/A
Maximum Grip Force
- 16 to 132 N (At 7 bar)
Maximum Operating Frequency
- 180
Maximum Static Compressive Force (N)
- N/A
Maximum Static Tensile Force (N)
- N/A
Maximum Stroke
- 6 to 16 mm
Operating Pressure
- +21.8 to +102 psi / +1.5 to +7 bar (No Springs)
Operating Temperature
- -5° to + 60° C (+23° to +140° F)
Piston Type
- Magnetic
Port Size
- M3, M5
Port Type
- BSPP
Position Accuracy (± mm)
- N/A
Position Repeatability (± mm)
- N/A
Position Sensing
- Yes (Slot-Mounted Sensor)
Power Requirement (Watts)
- N/A
Product Type
- Parallel Gripper
Weight
- 0.066 to 0.719 kg
