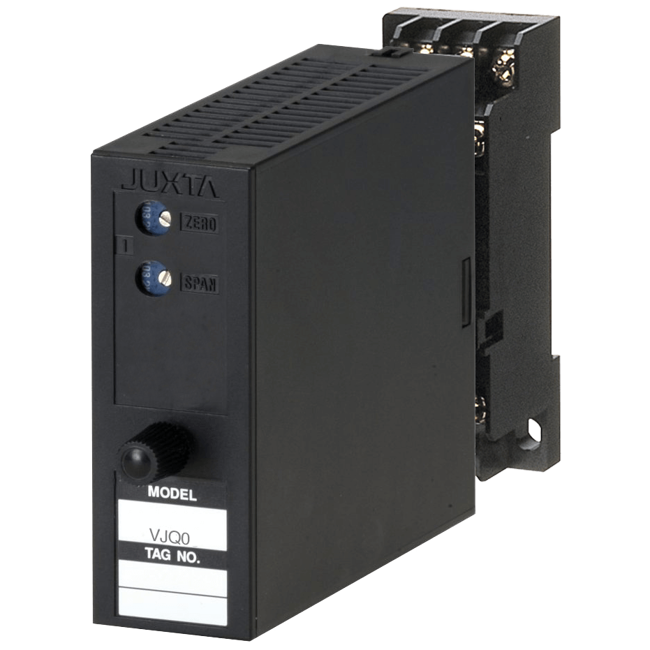

VJQ0 Single, Dual Output Analog to Pulse Converter
Brand: Yokogawa Electric CorporationThe VJQ0 is a compact, plug-in Analog to pulse converter that receives DC voltage or DC current signal and converts it into isolated pulse-train signal.
The converter provides either open-collector output or contactless AC switch output.
Features- A Wide Choice of Input Signal Ranges
- A Low-Level Cutoff Function (Which is Set at 1% as Standard, But Can be Set between 1% and 10%)
- Four Isolated Ports (Input, Output-1, Output-2, Power Supply and Grounding) on a Dual-Output Model
- A Withstanding Voltage of 2,000 Vac
- A Wide Supply Voltage Range - Supporting Both 100 V and 200 V Power Lines of AC or DC
- lose Side-by-Side Mounting
Specifications
Accuracy
- ± 0.1 % of Span
Approvals & Certifications
- CE
- EMC Standard: EN 61326
Current
- 100 µA-150 mA - Span (DC)
Dissipation
- 100 Vac, 3.7 VA - Power Dissipation
- 200 Vac, 5.0 VA - Power Dissipation
- 24 Vdc, 1.8 W - Power Dissipation
Electrical Connectors
- M3 Screw Terminal
Enclosure, Body Material
- Modified Polyphenylene Oxide
Frequency
- 0 to 4,000 Hz - Output Frequency Range
Humidity
- 5 to 90 % RH, Non-Condensing - Operating Humidity Range
Input
- 0 to 100 mVdc
- 0 to 150 mA DC
- -10-10 Vdc
Insulation Resistance
- 100 MΩ min. at 500 Vdc
Mounting
- DIN Rail Mounting
- Side-by-Side Mounting
- Wall Mounted
Operating Temperature
- 0° to 50° C (32° to 122° F)
Output
- 100 Vac / 200 mA - Contactless AC Switch Output, Max.
- 30 Vdc / 200 mA - Open Collector, Max.
Power Supply Effect
- Up to ± 0.1 % of Span for a Supply Voltage 85-264 Vac (47 to 63 Hz), 85-264 Vdc or 12-36 Vdc
Pulse Range
- 0.1 to 500 ms - Output Pulse Width
- 50 % Duty Ratio
Resistance
- 100 kΩ (When Turned Off)
- 100 to 1,000 ohms - Current Input Resistance
- Approximately 1 MΩ - Voltage Input Resistance
Response Time
- 1.5 seconds at A Span Smaller Than 100 Hz for a 63 % Response (10 to 90 % Change of Range)
- 150 ms at Span of 100 Hz or greater for a 63 % Response (10 to 90 % Change of Range)
Span & Zero Adjustments
- Within ± 1 % of Span - Zero Adjustment
- Within ± 5 % of Span - Span Adjustment
Supply Voltage
- 1,000 Vac for One Minute between Output-1 & Output-2 Terminals - Withstanding Voltage
- 10 mV-20 V - Span (DC)
- 100-240 Vac/dc (-15 %, 10 %), 50/60 Hz
- 15-30 Vdc (± 20 %)
- 2,000 Vac for One Minute between Input, (Output-1, Output-2), Power Supply & Grounding Terminals Mutually - Withstanding Voltage
Temperature Effect
- Up to ± 0.2 % of Span for a Temperature Change of 10° C (18° F) - Effect of Ambient Temperature Variations
Zero Offset
- 0 to 73 % - Zero Elevation (Current Signal)
- -80 to 73 % - Zero Elevation (Voltage Signal)
