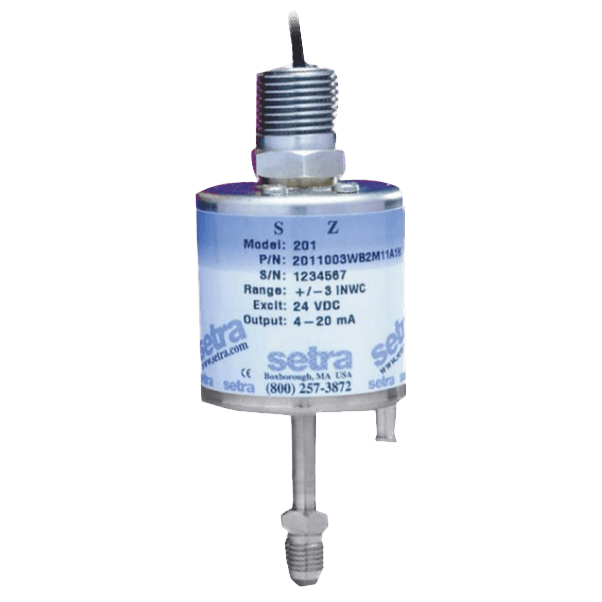

Model 201 Low Differential & Gauge Pressure
Brand: Setra Systems, IncSetra’s Model 201 is an accurate, low cost pressure transducer for measuring very low differential of gauge pressure.
The 201’s all-welded no o-ring construction results in a leak-free design, idea for the most critical low range applications.
The 201 process connection is designed to be used with pressure media compatible with stainless steel and 600 Series Inconel®. Setra’s patented variable capacitance sensor design combines the ultimate in simplicity, with high accuracy and superior thermal stability.
It features an Inconel® diaphragm and an insulated electrode. As pressure increases or decreases, the capacitance changes. This change in capacitance is detected and converted to a fully conditioned linear current output signal.
It’s rugged design, 45 psi high overpressure capability, and wide operating temperature make the Model 201 ideal for the most demanding applications.
Specifications
Brand
Accuracy
- ± 0.25 % of Full Scale
- RSS: ± 0.5 % of Full Scale (At Constant Temperature)
- Warm-Up Shift: 0.1 % of Full Scale/15 minutes
Applications
- Exhaust Gas Control Systems
- Industrial Scrubbers
- Vapor Recovery
Approvals & Certifications
- CE
Burst Pressure
- psi: 100 (kPa: 690, bar: 6.9)
Cable Length
- 2 ft (0.6 m)
Compensated Temperature
- -33° to 80° C (-25° to 175° F)
Conduit Connection
- 1/2" NPT
Constant Acceleration
- 10 G, Max.
Diaphragm Material
- Inconel
Electrical Connectors
- 2 Foot Multiconductor Cable (Standard)
- 3 Screw Terminal Block
- Circuit: 2-Wire
- Terminal Strip
Enclosure, Body Material
- Stainless Steel
Environmental Protection
- IP66
- NEMA 4
Hysteresis
- 0.25 % of Full Scale
Load
- External Load: 0 to 800 ohms
Media
- Clean Dry Air
- Gas
- Liquids
- Non-Corrosive Dry Gases
Non-Linearity
- ± 0.45 % of Full Scale BFSL
NPT Connection
- 1/4" NPT Female
- 1/4" NPT Male
Operating Temperature
- -40° to 80° C (-40° to 175° F)
Output
- 4-20 mA
Pressure Range
- bar: 0 to 1.38
- inH₂O: 0 to 50
- kPa: 0 to 138
- psig: 0 to 20
Pressure Type
- Differential
- Gauge
Proof Pressure
- psi: 45 (kPa: 310.3, bar: 3.103)
Response Time
- 20 ms
SAE Connection
- 7/16" SAE
Shock
- 50 G Operating
Span & Zero Adjustments
- Top External Access
Span & Zero Effect
- Span Shift: 1.4 % of Full Scale/°C (1.5 % of Full Scale/°F)
- Zero Shift: 1.8 % of Full Scale/°C (2 % of Full Scale/°F)
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Supply Voltage
- Loop Supply Voltage: 24 Vdc
Tube Connection
- 1/4" Tube Stub
Vent
- Through Cable
Vibration
- MIL-STD-202F
