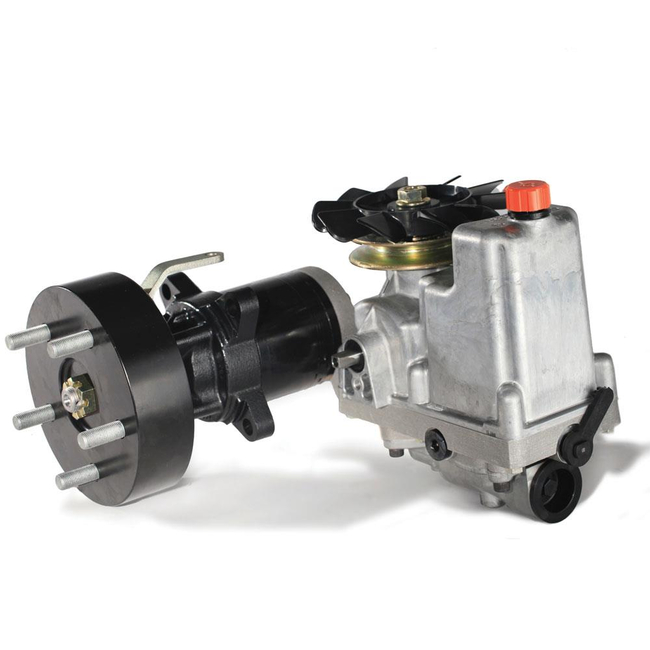

Light Duty Integrated Hydrostatic Transmission - HTE Series

HT transmissions reduce the number of parts on a zero turn mower propulsion system from 72 to 2 parts requiring less installation and procurement labor, which provides increased customer efficiency.

Parker's Integrated HTE Hydrostatic Transmissions provide a compact, economical solution for the propulsion systems of off-highway vehicles up to 1300 lb. gross vehicle weight.

One integrated package contains the hydrostatic variable displacement pump, reservoir, filter and standard of the industry low speed, high torque motor eliminating dozens of additional parts, reducing associated inventory and labor costs.

Parker's Integrated Hydrostatic Transmissions perform with up to 10% more overall efficiency than competitive offerings.

This means more horsepower is available to the mowing deck or other functions, and more hill-climbing capability.

The HTE Series transmission is a compact integrated product featuring torques to 5180 lb-in, side load to 2000 lb., shaft size 1.25 inch, integrated Parker axial piston pump and motor assembly, integral charge pump, world famous Parker Torqmotor™ TE gerotor motor, built-in internal fluid reservoir and filter, direct porting between the pump and motor, no external reservoir needed, fluid filled for life, with fan and pulley included.

Options: integral parking brake, four or five bolt hub, return-to-neutral assist and integral shock relief valves.

The HTE Series transmission is built with a 10 cc variable displacement piston pump and can be configured with motor displacements up to 293 cc.
