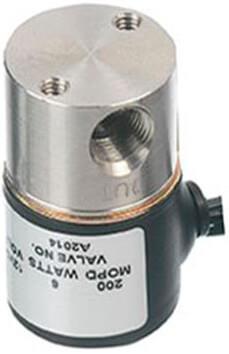

AS Series Solenoid Valve
Brand: Gems Sensors, IncThe AS Series is a 2-way isolation valve, designed to control the flow of various aggressive liquids and gases with several body and diaphragm materials.
With a modular design, the AS offers performance flexibility and the protection your media needs from the solenoid's internal components.
Numerous port configurations, voltage options, and coil constructions enable the AS Series to be a truly versatile miniature inert isolation valve, easily integrated into any complex or demanding system.
Features- MOPD: 110 PSI (7.5 Bar) Plastic Body or 150 PSI (10 Bar) Metal Body
- Cv: 0.020 to 0.300 (Kv: 0.017 to 0.256)
- 4.5 Watts (Plastic Body) or 7 Watts (Metal Body)
Specifications
Brand
Enclosure / Body Material
- 303 Stainless Steel
- Polypropylene
- Brass
- 316 Stainless Steel
Seal Material
- Viton
- EPR
- Nitrile
- Perfluoroelastomer
MOPD
- 110 psi (7.5 bar) Plastic Body
- 150 psi (10 bar) Metal Body
Flow Rate
- 0.02 to 0.3 Cv
- 0.017 to 0.256 Kv
Orifice Size
- 1/32" to 5/32"
- Analytical Instruments
- Clinical Diagnostic Analyzers
- Bio-Instrumentation
