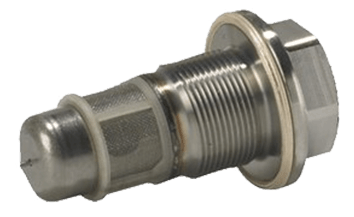

TUA/TUAE Orifice Assembly for Expansion Valve
Brand: Danfoss
TUA/TUAE valves are made of stainless steel and are therefore very suitable for refrigeration systems in the food industry.
TUA/TUAE valves are available with interchangeable orifice assembly in straightway versions.
TUA/TUAE has been specially developed for soldering into hermetic refrigeration systems.
1 - 10 of 10 Part Numbers
068U1030
- Orifice Number - 0
- Range - Range N: -40° to 10° C
068U1031
- Orifice Number - 1
- Range - Range N: -40° to 10° C
068U1032
- Orifice Number - 2
- Range - Range N: -40° to 10° C
068U1033
- Orifice Number - 3
- Range - Range N: -40° to 10° C
068U1034
- Orifice Number - 4
- Range - Range N: -40° to 10° C
068U1035
- Orifice Number - 5
- Range - Range B: (-60° to -25° C)
068U1036
- Orifice Number - 6
- Range - Range N: -40° to 10° C
068U1037
- Orifice Number - 7
- Range - Range N: -40° to 10° C
068U1038
- Orifice Number - 8
- Range - Range N: -40° to 10° C
068U1039
- Orifice Number - 9
- Range - Range N: -40° to 10° C
1 - 10 of 10 Part Numbers
Specifications
Brand
Applications
- Used in Many Different Forms of Refrigeration Systems
Capillary Length
- 5 ft (1.5 m)
Operating Pressure
- Permissible Operating Pressure: psi: 493.1 (kPa: 3,400, bar: 34) (Excluding R410A)
- psi: 659.9 (kPa: 4,550, bar: 45.5) - Max.
Pressure Drop
- Across Valve: psi: 29.01 to 232.1 (kPa: 200 to 1,600, bar: 2 to 16)
Pressure Range
- psi: 0 to 165 (kPa: 0 to 1,138, bar: 0 to 11.38) - Evaporating Pressure
Proof Pressure
- psi: 543.9 (kPa: 3,750, bar: 37.5) - Max.
- psi: 725.2 (kPa: 5,000, bar: 50) - Max.
Rated Capacity
- 0.36 to 26 kW
Supply Pressure - Maximum
- psi: 660 (kPa: 4,550, bar: 45.51)
Temperature Range
- 150° C (302° F) - Short-Lived Peak
- -60° to 10° C (-76° to 50° F)
- Maximum
- Refrigeration Systems
