FQ2P Free Range Type Analog to Pulse Converter
Brand: Yokogawa Electric Corporation

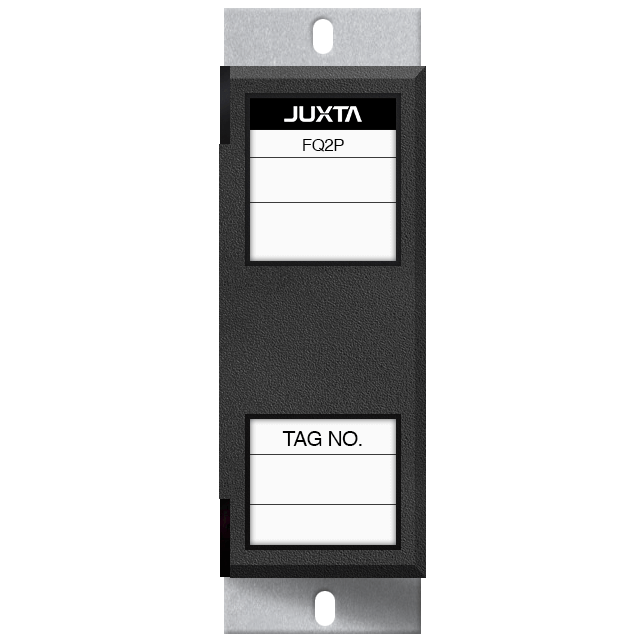

The FQ2P is a compact, front terminal connection type Analog-to-pulse converter that converts DC current or DC voltage signals into pulse-train signals.
Features- I/O range, output pulse width, and low cut point setting, zero/span adjustment and I/O monitoring can be made on-site, using the optional Parameter Setting Tool (VJ77) or Handy Terminal (JHT200)
Specifications
Accuracy
- ± 0.1 % of Span
Consumption
- 60 mA at 24 Vdc - Current Consumption
Current
- 1-100 mA DC - Span
Duty Cycle
- 50 ± 10 %
Enclosure, Body Material
- ABS Resin
Frequency
- 0 to 1,000 Hz - Output Fequency
Humidity
- 5 to 90 % RH, Non-Condensing - Operating Humidity Range
Input
- 0 to 100 mA DC
- -30 to 30 Vdc
- 70 mA DC or Less - Max.
- Within ± 15 Vdc - Max.
Input Signal
- 0-50 mA DC
- -10 to 10 Vdc
Insulation Resistance
- 100 MΩ or more at 500 Vdc between Input & Output, Output & Power Supply & Input & Power Supply
Load
- 240 Vac / 200 mA - Max.
- 30 Vdc / 200 mA - Max.
Mounting
- DIN Rail Mounting
- M4 Screw
- Rack-Mounted
- Wall Mounted
Operating Temperature
- 0° to 50° C (32° to 122° F)
Output Format
- Contactless AC/DC Switch
- Open Collector
Power Supply
- 24 Vdc ± 10 % (Percentage Ripple is 5 % Peak-to-Peak or Less)
Power Supply Effect
- ± 0.1 % of Span or Less for the Fluctuations within the Operating Range of Power Supply Voltage Specification
Pulse Range
- 0.1 to 500 ms - Pulse Width Setting Range (Fixed Pulse Width)
Resistance
- 1 MΩ - Input Resistance During Power-On
- 100 kΩ - Input Resistance During Power Off
- 100 ohms - Input Resistance
Span & Zero Adjustments
- ± 1 % - Input Adjustment
- ± 10 % - Output Adjustment
Supply Voltage
- 1,500 Vac/minute between Input & (Output & Power Supply) - Withstand Voltage
- 3-60 Vdc - Span
- 500 Vac/minute between Output & Power Supply - Withstand Voltage
Temperature Effect
- ± 0.2 % of Span or Less for Ambient Temperature Change of 10° C (18° F)
Zero Offset
- 0 to 50 % - Current Signal Zero Elevation
- -50 to 50 % - Voltage Signal Zero Elevation
