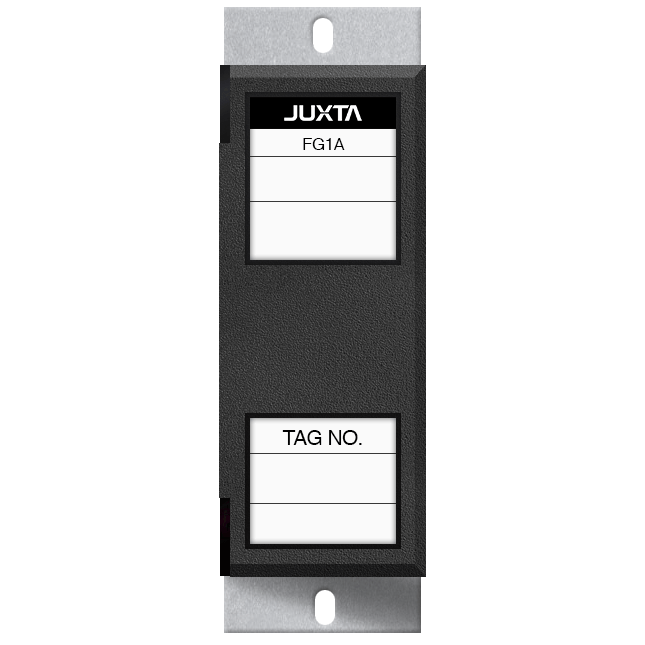

FG1A/FG1V PT Converter
Brand: Yokogawa Electric Corporation
The FG1A/FG1V is a compact, front terminal connection type PT converter that converts AC voltage signals into isolated DC current or DC voltage signals.
Features- AC/DC Conversion is Made by Root Mean Square Value
Specifications
Accuracy
- ± 0.2 % of Span
Consumption
- 60 mA at 24 Vdc - Current Consumption (FG1V)
- 90 mA at 24 Vdc - Current Consumption (FG1A)
Current
- 1-24 mA DC - Span
Electrical Connectors
- M4 Screw Terminal
Enclosure, Body Material
- ABS Resin
Frequency
- 40 to 10,000 Hz - Input Frequency Range
Humidity
- 5 to 90 % RH, Non-Condensing - Operating Humidity
Input
- 0.5 VA or Less - Input Loss
- 0 to 300 Vac
- 120 % (Continuous) - Max.
- 200 % (One Minute) - Max.
Input Signal
- 0 to 110 Vac
- 0 to 150 Vac
Insulation Resistance
- 100 MΩ or more at 500 Vdc between Input, Output & Output, Power Supply & Input, Power Supply
Mounting
- DIN Rail Mounting
- Rack-Mounted
- Wall Mounted
Operating Temperature
- 0° to 50° C (32° to 122° F)
Output
- 0-100 mVdc
- 0-24 mA DC
- -10 to 10 Vdc
Power Supply
- 24 Vdc ± 10 % (Percentage Ripple is 5 % Peak-to-Peak or Less)
Power Supply Effect
- ± 0.1 % of Span or Less for the Fluctuation within the Operating Range of Power Supply Voltage Specification - Effect of Power Supply Voltage Fluctuations
Resistance
- 2 to 250 kΩ or more - Allowable Load Resistance for DC Voltage Output
- 750 to 15,000 ohms or Less - Allowable Load Resistance for DC Current Output
Response Time
- 170 ms, 63 % Response (10 to 90 %)
Span & Zero Adjustments
- -5 to 5 % - Zero Adjustment
- 95 to 105 % - Span Adjustment
Supply Voltage
- 10 mV-20 V - Span (DC)
- 2,600 Vac/minute between Input & Output & Power Supply - Withstand Voltage
- 30-300 Vac - Span
- 500 Vac/minute between Output & Power Supply - Withstand Voltage
Temperature Effect
- ± 0.2 % of Span or Less for a Temperature Change of 10° C (18° F) - Effect of Ambient Temperature Change
Zero Offset
- 0 to 200 % - Zero Elevation for Current Signal
- -100 to 200 % - Zero Elevation for Voltage Signal
