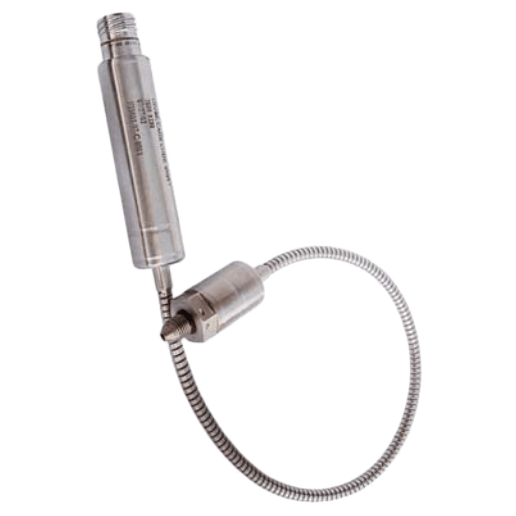

Model 7780 Pressure Transducer
Brand: GP:50 New York Ltd
Features
- Output Signal: 0 to 5, 0 to 10, 4 to 20 mA
- Excitation Voltage: 18 to 36 Vdc
- Pressure Range: 0 to 15,000 psi (0 to 1,034 bar, 0 to 103,421 kPa)
- Burst Pressure: 2 times pressure range
- Proof Pressure: 1.5 times pressure range
- Electrical Connections: PTIH-10-6P
- Process Connection: AS4395E04
- Temperature Range:
- Operating: 20° to 204°C (70° to 400°F)
- Static Accuracy: <±0.3% FSO
- Materials of Construction:
- Wetted Parts: 17-4 Stainless Steel
- Housing: 316 Stainless Steel
- Flex Tubing: 18" armored capillary tube
Specifications
Brand
Accuracy
- < ± 0.3 % of FSO
Burst Pressure
- 2 x FSO
Circuit Protection
- EMI/RFI Protected
- Meets MIL-STD-461/462
Electrical Connectors
- Bendix PTIH-10-6P
Enclosure, Body Material
- 316 Stainless Steel
Hysteresis
- < ± 0.2 % of FSO
Independent Linearity
- < ± 0.2 % of FSO
Operating Temperature
- 20° to 204° C (70° to 400° F)
Output
- 0-10 Vdc
- 0-5 Vdc
- 4-20 mA
Pressure Range
- bar: 1 to 1,034
- kPa: 0 to 103,421
- psi: 0 to 15,000
Pressure Type
- Absolute
- Gauge
- Sealed Gauge
Proof Pressure
- 1.5 x FSO
Repeatability
- < ± 0.1 % of FSO
Response Time
- < 4 ms
Supply Voltage
- 18 V to 36 Vdc
- 9 to 36 Vdc
Wetted Materials
- 630 Stainless Steel
