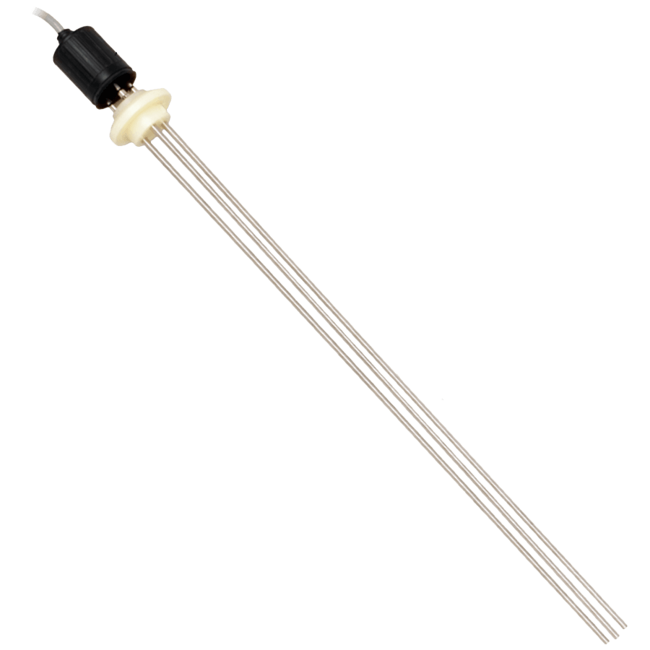

Warrick Series 3M Food Grade Electrode Fitting
Brand: Gems Sensors, IncDesigned for use in food, beverage and pharmaceutical applications where cleanliness is vital.
Two-piece Series 3M assemblies can handle up to 4 probes. FDA-approved materials.
Engineered for fast removal of fitting to facilitate cleaning and sterilization.
Features- Easy removal for cleaning
- CSA approved
- FDA approved
Specifications
Brand
Adjustment Type
- Probe Length: Factory Set (Pre-Set)
Applications
- CIP- Systems
- Food & Beverage
- Pharmaceutical
Approvals & Certifications
- CSA
- FDA
Enclosure, Body Material
- Typical 66 Nylon
Pressure Range
- psig: 0 to 150 (kPa: 0 to 1,000, bar: 0 to 10)
Process Connection - Other
- Body Contour: 45° Bevel
Sensor / Probe Length
- 1 to 3 ft (30.48 to 91.44 cm)
Sensor / Probe Material
- 316 Stainless Steel
Temperature Range
- 0° to 65° C (32° to 149° F)
Tri-Clamp Connection
- 2" Tri-Clamp
- CIP- Systems
- Food & Beverage
- Pharmaceutical
