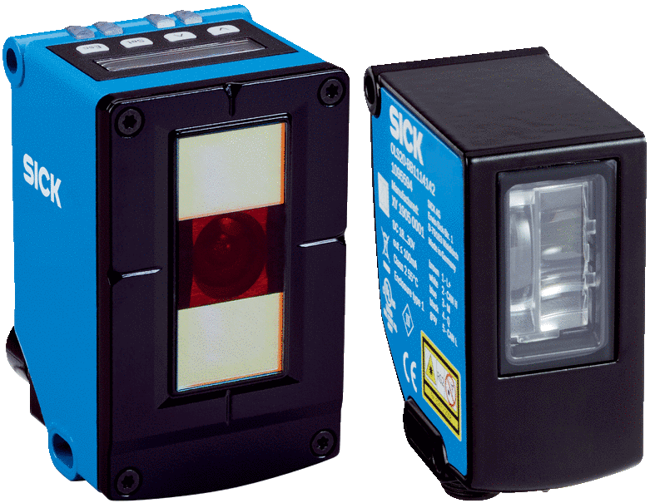

OLS Line Guidance and Grid Localization
Brand: Sick AGThe OLS is a line guidance sensor based on luminescence technology.
It detects conventional luminescent adhesive tape regardless of the background, contamination or surface defects and reliably outputs the deviation from the center of the lane.
Lane shifts can be made flexibly with adhesive tape and are also possible in small curve radii of up to 0.5 m.
In addition, the OLS offers the option of reading 1D codes and thus transmitting various information and drive commands in the event of an overrun.
A CANopen, RS-485, IO-Link and an Ethernet interface with integrated web server enable simple installation and commissioning.
The OLS is therefore the most cost-effective solution for line guidance with a focus on ruggedness and flexibility.
Features- Rugged and accurate, insensitive to ambient light, contamination or surface defects
- Independent of base material or color
- Simple line shifts and route changes by attaching conventional adhesive tape
- Small curve radii of up to 0.5 m possible
- Large reading field enables flexible line shifts (branches, junctions)
- Reading bar codes makes it possible to transmit distance information or drive commands and simplifies vehicle control
- Cost efficient compared to camera solutions
- Low installation costs
1 - 4 of 4 Part Numbers
1092169
- Communication Interface - Ethernet, CANopen
- Switching Output - PNP
- Light Spot Size - 180 mm x 11 mm
- Bar Code Types - Interleaved 2 of 5
- Connection Type - Connector M12, 12-Pin
- Type - OLS10-BP112311
1095594
- Communication Interface - IO-Link, CANopen
- Bar Code Types - Interleaved 2 of 5
- Connection Type - Male Connector M12, 5-Pin
- Type - OLS20-BB1114142
1100421
- Communication Interface - IO-Link, Modbus
- Bar Code Types - Interleaved 2 of 5
- Connection Type - Male Connector M12, 5-Pin
- Type - OLS20-BB1118142
1113054
- Communication Interface - IO-Link, Modbus
- Bar Code Types - 2/5 Interleaved with Checksum
- Connection Type - Male Connector M12, 5-Pin
- Type - OLS20-BB1118342
1 - 4 of 4 Part Numbers
Specifications
Brand
Certifications & Approvals
- CE
- cULus Listed
Accuracy
- ± 1 mm
Communication Interface
- CANopen
- Ethernet TCP/IP
- IO-Link
- Modbus
Enclosure Rating
- IP64
- IP67
Connection Type
- Male Connector M12, 5-Pin
- Connector M12, 12-Pin
Switching Output
- PNP
- Push-Pull: PNP/NPN
