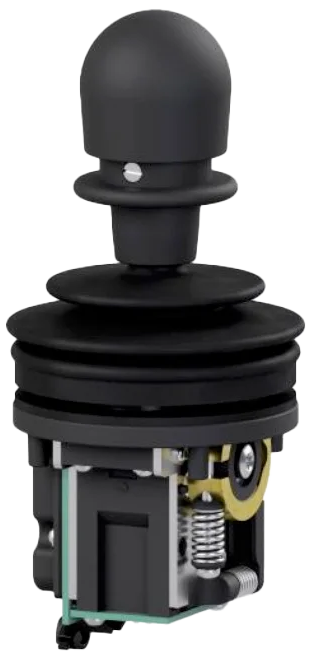

SK216 The Tough One Joystick
Brand: GT Controls LLCThis joystick has been developed to perform in a rough environment but still gives out a smooth and stable output signal.
With two overlaying rubber boots, it is not only more than leak proof, it even allows for the upper boot to be exchanged while installed.
It comes in different models and is configurable to your needs.
Please contact us, it will be our pleasure to suggest an individual joystick solution for your specific needs.
Your solution is our standard.
Features- "Double Boot" Design
- Single Axis
- With or Without Adjustable Friction Brake
- Self-centering
- Lift to Operate Feature
- Analog or Digital Outputs
- Custom Options And Interfaces
Specifications
Brand
Axes
- 1 Axis
Deflection Angle
- 53°
Resetting
- Center-lock
- Friction Brake
Push Button
- Optional
Options
- Self-centering
Height Above Panel
- 83mm
- ~3.26in
Mounting Depth
- 62mm
- ~2.44in
- Below Panel
Panel Cut-out
- Ø 51mm
- ~2.00in
Bolt Square
- 40mm / 1.57in with 4 x K30 Self-tapping Screws
Technology
- Hall-effect Sensors
- Ask for Options
Operating Voltage
- 5V DC
- Ask for Options
Output Signal
- Analogue - Standard
- Ask for Options
Connection
- MATE-N-LOK
- Ask for Options
Durability
- Up to 3 million full cycles
Operation Temperature
- -30° - +80°C
- -22°F - +176°F
Storage Temperature
- -40° - +85°C
- -40°F - +185°F
IP Protection Class
- IP67
- Above Panel
- 2 Rubber Boots
Fire Protection
- UL94-V0
Operating Force
- Y axes 3 N breakout
Maximum Allowed Force
- > 250N
- Vehicles
- Machinery
- Off-shore
