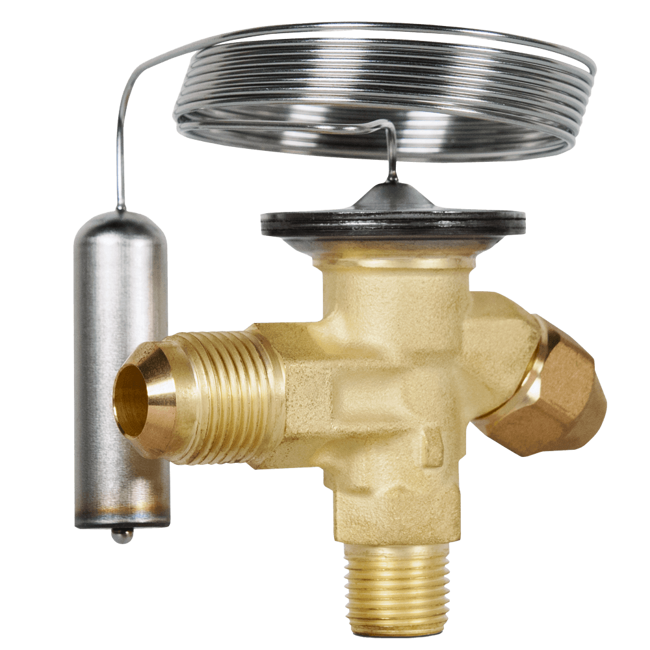

T2/TE2 Thermostatic Expansion Valve
Brand: Danfoss
Thermostatic expansion valves regulate the injection of refrigerant liquid into evaporators. Injection is controlled by the refrigerant superheat.
Therefore the valves are especially suitable for liquid injection in "dry" evaporators where the superheat at the evaporator outlet is proportional to the evaporator load.
Features- Large temperature range equally applicable to freezing, refrigeration and air conditioning applications
- Interchangeable orifice assembly: Easy storage; Easy capacity matching; Better service
- Rated capacities from 0.96 to 20.5 kW (0.27 to 5.82 TR) for R407C
- Can be supplied with MOP (maximum operating pressure) protects the compressor motor against excessive evaporating pressure during normal operation
- Stainless steel bulb and danfoss patented bulb strap: Fast and easy to install; Good temperature transfer from pipe to bulb
- Valves for special temperature ranges can be supplied
- Design protected
Specifications
Brand
Capacity
- Nominal Capacity: 0.65 to 22.9 KW
Capillary Length
- 5 ft (1.5 m)
Materials of Construction
- Bulb: Stainless Steel
- Tube: Copper
Operating Pressure
- psi: 493.1 (kPa: 3,400, bar: 34) - Max.
Pressure Drop
- psi: 0 to 29.01 (kPa: 0 to 200, bar: 0 to 2)
Proof Pressure
- psi: 551 (kPa: 3,800, bar: 38) - Max.
Temperature Range
- Evaporating Temperature: -60° to 15° C (-76° to 59° F)
- Maximum
Tube Connection
- 1/4" Tube
- 6 mm Tube
Tube Inlet
- 10 mm Tube
- 3/8" Tube
Tube Outlet
- 1/2" Tube
- 12 mm Tube
