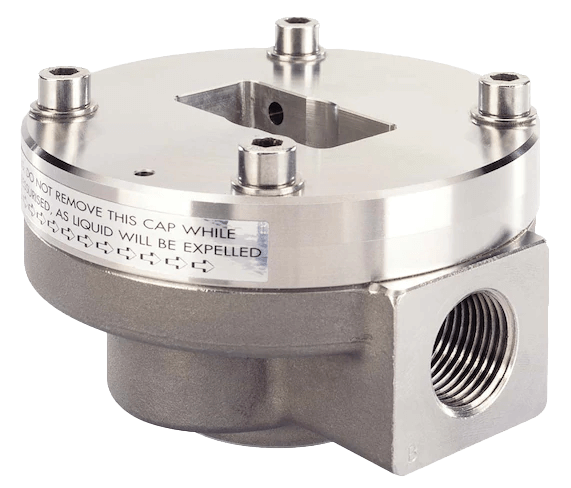

Burkert Positive Displacement Sensor Fitting, S070

S070 Positive Displacement Sensor Fitting

Brand: Burkert Fluid Control Systems
Add Product to My Catalog

Burkert Positive Displacement Sensor Fitting, S070 Burkert Positive Displacement Sensor Fitting, S070
This positive displacement sensor fitting is specially designed for flow measurement and/or batch control of highly viscous fluids like glue, honey or oil.

This measuring element must be associated to an electronic module SE30, SE32, SE35, SE36 with hall sensor principle only, quickly and easily connected together by a Quarter-Turn. The design of this fitting is based on the oval rotor principle.

This has proven to be a reliable and highly accurate volumetric method of measuring flow. Exceptional repeatability and high accuracy over a wide range of viscosities and flowrates are features of that design. The low pressure drop and high pressure rating make it suitable for both gravity and pump (in-line) applications.
Features
  • DN15 to DN100
  • INLINE Quarter-Turn technology
  • Electronics available for indication, monitoring, transmitting, On/Off control and batch control

1 - 12 of 32 Part Numbers
443 985
443 985
  • Orifice Size - DN 15
  • Process Connection - G1/2"
  • Body Material / Rotor Material / Seal Material - Aluminum / PPS / FKM
443 986
443 986
  • Orifice Size - DN 25
  • Process Connection - G 1"
  • Body Material / Rotor Material / Seal Material - Aluminum / PPS / FKM
443 987
443 987
  • Orifice Size - DN 40
  • Process Connection - G1-1/2"
  • Body Material / Rotor Material / Seal Material - Aluminum / PPS / FKM
443 988
443 988
  • Orifice Size - DN 40
  • Process Connection - 40 mm DIN PN 16 Flange
  • Body Material / Rotor Material / Seal Material - Aluminum / PPS / FKM
443 989
443 989
  • Orifice Size - DN 50
  • Process Connection - 50 mm DIN PN 16 Flange
  • Body Material / Rotor Material / Seal Material - Aluminum / PPS / FKM
443 990
443 990
  • Orifice Size - DN 15
  • Process Connection - G1/2"
  • Body Material / Rotor Material / Seal Material - Stainless Steel / Stainless Steel / FEP/PTFE
443 991
443 991
  • Orifice Size - DN 25
  • Process Connection - G 1"
  • Body Material / Rotor Material / Seal Material - Stainless Steel / Stainless Steel / FEP/PTFE
443 992
443 992
  • Orifice Size - DN 40
  • Process Connection - G1-1/2"
  • Body Material / Rotor Material / Seal Material - Stainless Steel / Stainless Steel / FEP/PTFE
443 993
443 993
  • Orifice Size - DN 40
  • Process Connection - 40 mm DIN PN 16 Flange
  • Body Material / Rotor Material / Seal Material - Stainless Steel / Stainless Steel / FEP/PTFE
443 994
443 994
  • Orifice Size - DN 50
  • Process Connection - 50 mm DIN PN 16 Flange
  • Body Material / Rotor Material / Seal Material - Stainless Steel / Stainless Steel / FEP/PTFE
443 995
443 995
  • Orifice Size - DN 15
  • Process Connection - 1/2" NPT
  • Body Material / Rotor Material / Seal Material - Aluminum / PPS / FKM
443 996
443 996
  • Orifice Size - DN 25
  • Process Connection - 1" NPT
  • Body Material / Rotor Material / Seal Material - Aluminum / PPS / FKM
1 - 12 of 32 Part Numbers

Specifications

Brand

Accuracy

  • ± 0.5 % of Reading

Ambient Temperature Range

  • Operation & Storage: 0° to 60° C (32° to 140° F)

Applications

  • Gravity
  • Pump (In-Line) Applications

Approvals & Certifications

  • PED 97/23/CE

BSP Connection

  • G 1" Female
  • G 1/2" Female
  • G 1-1/2" Female
  • G 2" Female
  • G 3" Female

Diameter

  • Pipe: 1/2 to 4" (DN 15 to DN 100)

Enclosure, Body Material

  • 316F Stainless Steel
  • Aluminum

Environmental Protection

  • IP66
  • IP67
  • NEMA 6

Flange Size - 1-1/2” (DN 40)

  • 1-1/2" (DN 40) - 150# ANSI
  • 1-1/2" (DN 40) - PN 16 (DIN)

Flange Size - 1” (DN 25)

  • 1" (DN 25) - 150# ANSI
  • 1" (DN 25) - PN 16 (DIN)

Flange Size - 2” (DN 50)

  • 2" (DN 50) - 150# ANSI
  • 2" (DN 50) - PN 16 (DIN)

Flange Size - 3” (DN 80)

  • 3" (DN 80) - 150# ANSI
  • 3" (DN 80) - PN 16 (DIN)

Flange Size - 4” (DN 100)

  • 4" (DN 100) - 150# ANSI
  • 4" (DN 100) - PN 16 (DIN)

Measuring Range

  • Viscosity 5 Cps: 0.53 to 320 gpm (2 to 1,200 L/minute)

NPT Connection

  • 1" NPT Female
  • 1/2" NPT Female
  • 1-1/2" NPT Female
  • 2" NPT Female
  • 3" NPT Female

Orifice Size

  • Flanged Connection: 25 to 100 mm
  • Threaded Connection: 15 to 80 mm

Pressure Range

  • bar: 0 to 55
  • kPa: 0 to 5,500
  • psi: 0 to 798.05

Process Temperature

  • Aluminum Body: 80° C (176° F)
  • Stainless Steel Body: 120° C (248° F)

Repeatability

  • ± 0.03 % of Reading

Seat / Seal Material

  • Seal: FEP Encapsulated
  • Seal: FKM
  • Seal: PTFE Encapsulated

Shaft Material

  • 316 Stainless Steel

Size

  • Particle Size: 250 µm, Max.

Viscosity

  • 5 Cps
  • 1,000 Cps, Max.

Wetted Materials

  • Rotor: 316F Stainless Steel
  • Rotor: Aluminum
  • Rotor: PPS

  • Pump (In-Line) Applications
  • Gravity
