OBSOLETE: Pneumatic Rotary Positioning Stages - P5RS Series (Rotary Tables)

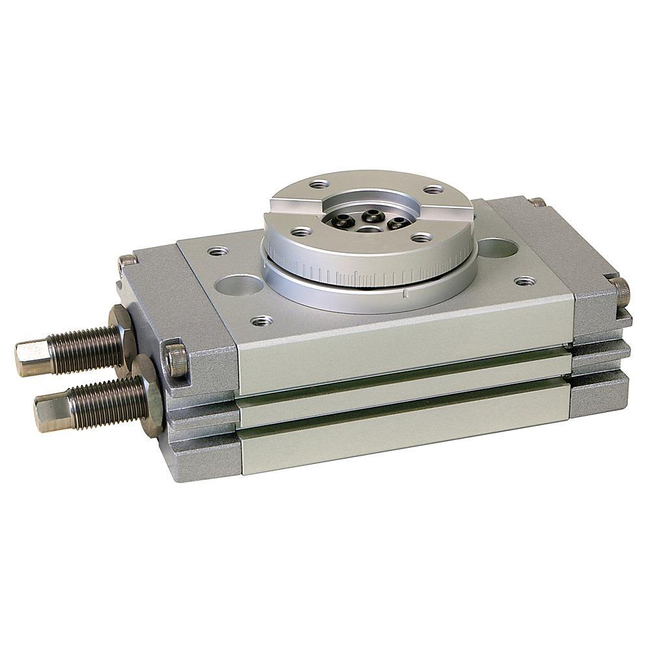

Brand: Parker HannifinThe P5RS is a rotary table actuated using a twin rack and pinion design.
Stroke adjusters are standard and enable adjustment from 0 to 190 degrees of rotation.
The center shaft is hollow to allow piping, or wiring, to pass through to mounted accessories.
A magnetic piston is standard and shock absorbers are available.
Features- Modular pick and place component or precision rotary actuator with adjustable rotation
- Compact design minimizes the design footprint
Specifications
Brand
Body Material
- Aluminum Alloy
Cushioning Mechanism
- N/A
Full Rotation Range (Degrees)
- 0° to 190° (Adjustable)
Maximum Pressure (bar)
- 9
Maximum Pressure (psi)
- 130.5
Piston Material
- Stainless Steel
Port Size
- 1/8"
Port Type
- BSPP
Position Sensing
- Yes
Product Type
- Rack & Pinion
Seal Material
- NBR
Sensor Type
- Reed / NPN / PNP
Shaft Material
- Stainless Steel
Stroke Adjustment
- Stroke Adjusters/Shock Absorbers
Temperature Range (°C)
- -5° to 60°
Temperature Range (°F)
- 23° to 140°
Torque Range (Nm)
- 1.69 to 13.52 (At 7 bar)
Weight (kg)
- 0.7 to 3.07
Weight (Lbs)
- 8.6 to 12.2
- Factory Automation
- Machine Tools
- Packaging Machinery
- Vehicle Assembly Facilities
- Material Handling
- Outdoor, Transport
