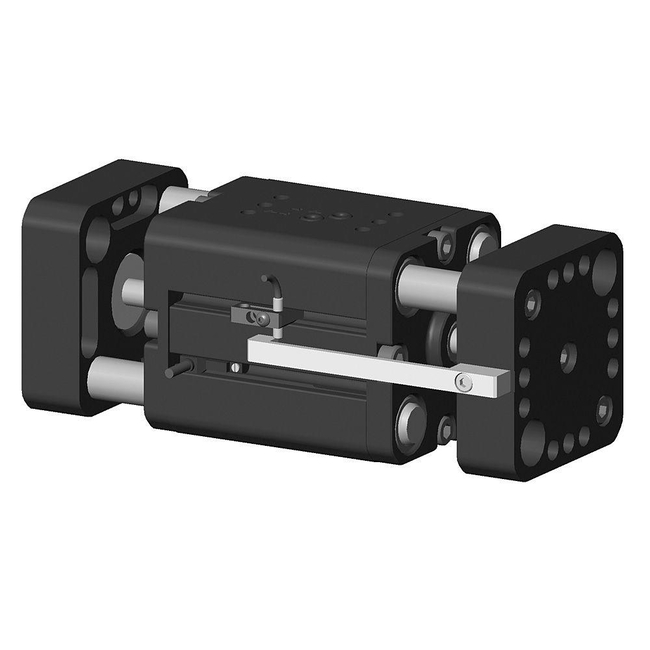

Parallel Gripper - P5GS Series (Wide Body)
Brand: Parker HannifinP5GS is a wide body gripper with hardened precision shafting for wear resistance and longer life. Jaws are supported by two shafts the entire length of the body. End of stroke cushions reduce shock. Jaw counterbores increase the range of applications.
P5GS is a wide body series of grippers. The units have hardened precision shafting for wear resistance and longer life.
Jaws are supported by two shafts that extend the entire length of the body and are guided by two oil impregnated bronze bushings per shaft.
End of stroke cushions reduce shock at fully open and fully closed strokes. Counterbores are provided on the inside of the jaws for through mounting to increase the range of applications.
Top air ports can be O-ring manifold sealed to eliminate the need for air lines. Two standard air port locations provide versatility - front and top. Slip fit dowel pin holes are located in the body and jaws. Sensor mounting slots and a magnets are also standard.
Features- Modular pick and place component for gripping and holding objects
- Compact design minimizes the design footprint
- Anodized aluminum and stainless steel construction for corrosion resistance
- Hardened and precision ground steel jaws
Specifications
Brand
Bearing Type
- Bronze Bushings
Body Material
- Aluminum
Bore Size
- 16 mm / 24 mm / 32 mm
Corrosion Resistant Option
- No
Cushioning Mechanism
- Cushions
Function
- Double-Acting
Gripper Jaw Material
- Aluminum
Input Supply Voltage
- N/A
IP Protection Rating
- N/A
Maximum Dynamic Compressive Force (N)
- 267
Maximum Dynamic Tensile Force (N)
- 267
Maximum Grip Force (N)
- 222 to 800 (At 7 bar)
Maximum Operating Frequency
- N/A
Maximum Static Compressive Force (N)
- 2668
Maximum Static Tensile Force (N)
- 2668
Maximum Stroke (mm)
- 19.1 to 73.5
Operating Pressure (bar)
- 3 to 7 (No Springs)
Operating Pressure (psi)
- 44 to 102 (No Springs)
Operating Temperature (°C)
- -35° to +80° C
Operating Temperature (°F)
- -30° to +180° F
Piston Type
- Non-Magnetic
Port Size
- M3, M5
Port Type
- BSPP
Position Accuracy (± mm)
- 0.08
Position Repeatability (± mm)
- 0.03
Position Sensing
- Yes (Slot-Mounted Sensor)
Power Requirement (Watts)
- N/A
Product Type
- Parallel Gripper
Weight (kg)
- 0.30 / 2.0
- General Industry – Linear Movement
- Gripping/Holding Objects
- General Industry - Clamping
- Gripping/Holding Objects
- General Industry - Holding
- Gripping/Holding Objects
- General Industry - Controlling
- Gripping/Holding Objects
- Packaging – Moving
- Gripping/Holding Objects
- Outdoor Transport and Railway – Linear Movement
- Gripping/Holding Objects
- Markets:
- Factory Automation
- Machine Tools
- Packaging Machinery
- Vehicle Assembly Facilities
- Material Handling
- Outdoor, Transport
