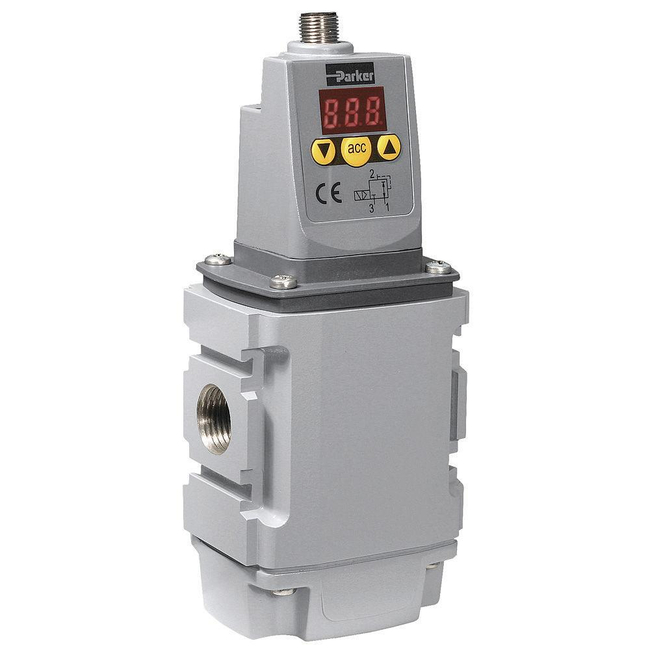

Electronic Proportional Regulators - P32P Series
Brand: Parker HannifinP32P compact programmable electronic proportional regulator allows for regulation of outlet pressure proportionally to an electrical control signal.
This unit utilizes an onboard user friendly LED display for changing and customizing parameters.
P32P programmable electronic proportional regulators allow for regulation of outlet pressure proportionally to an electrical control signal in order to deliver best performance and reliability.
This unit utilizes an onboard user friendly LED display for changing and customizing parameters such as adjustment of pressure limits, control signal (0-10V or 4-20mA), output signal, set pressure scale (PSIG, bar, Mpa), minimum and/or maximum pressure, and behavior control.
Units can be ordered in normally closed (NC) or forced exhaust normally open (NO) versions. For the forced exhaust version, when supply voltage is lost, the unit will automatically exhaust the regulated pressure to zero.
Internal pulse-width modulated valves control the output pressure proportionally to an analogue input control signal of 0-10V or 4-20mA.
The unit is comprised of a piston operated pneumatic pressure regulator controlled by a closed loop system.
An internal pressure sensor measures the output pressure of the regulator and provides a feedback signal to the controller.
Any difference between the set point and feedback is converted to a digital signal which will energize either of the internal solenoid valves to correct the output pressure of the regulator.
Features- Very fast response times
- Accurate output pressure
- Micro parameter settings
- Selectable I/O parameters
- Quick, full flow exhaust
- LED display indicates output pressure
- No air consumption in steady state
- Multiple mounting options
- Protection to IP65
Specifications
Brand
Configuration Type
- Keypad
Control Method
- 0-10 V, 4-20 mA
Display
- LED
Electrical Connectors
- M12 Micro, 8-Pin
Environmental Rating
- IP65
Inlet Pressure Range (bar)
- 0 to 12
Inlet Pressure Range (psig)
- 0 to 174
Input Supply Voltage
- 24 Vdc
Maximum Flow Rate (m³/hr)
- 150
Maximum Flow Rate (scfm)
- 88
Media
- 40 μ Filtered Compressed Air / Inert Gas
Port Size
- 1/4, 1/2"
Port Type
- BSPP / NPT
Power Consumption (W)
- 2.8
Pressure Control Range (bar)
- bar: 0 to 10
Pressure Control Range (psig)
- psig: 0 to 145
Product Type
- Electronic Proportional Regulator (Pulse Width Modulated)
Response Time (msec)
- Filling: 60 to 120 / Emptying: 90 to 190
Temperature Range (°C)
- 0° to 50° C
Temperature Range (°F)
- 32° to 122°
Weight (kg)
- N/A
Weight (Lbs)
- N/A
- Welding applications
- Material Handling
- Pick and Place
- Flow regulation
- Pressure regulation
- Positioning
