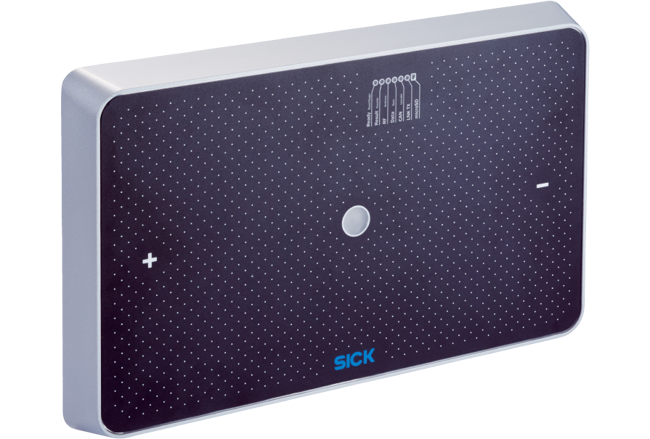

RFU65x Series RFID
Brand: Sick AGThe RFU65x RFID read/write device saves space, time, and costs when it comes to identifying vehicles and vehicle parts. This compact device is able to determine the angle from which the transponder responds.
The RFU65x also features an integrated logic unit that processes data on the basis of algorithms. This makes it possible to deduce entry detection information plus a vehicle’s direction of movement when it drives through a receiving goods door, for example.
Unlike other devices, the RFU65x does not require any additional external antennae. Not only does this cut down on costs, it also simplifies and accelerates application processes in logistics and the automotive industry.
Features- High process transparency due to the detection of movement direction and the position of transponders
- Easy configuration through SOPAS ET or the integrated web server saves time and costs for commissioning
- Maximum flexibility when programming individual software solutions with SICK AppSpace
- The rugged design enables reliable operation - even in tough industrial environments
- Very little programming work needed in the control due to intelligent process logics in the device
1 - 7 of 7 Part Numbers
1073556
- Radio Approval - Europe
- Type - RFU650-10100
1076522
- Radio Approval - USA, Canada, México
- Type - RFU650-10101
1083559
- Radio Approval - China
- Type - RFU650-10105
1083560
- Radio Approval - Japan
- Type - RFU650-10106
1087587
- Radio Approval - Australia
- Type - RFU650-10102
1092036
- Radio Approval - Brazilian
- Type - RFU650-10104
1096413
- Radio Approval - India
- Type - RFU650-10103
1 - 7 of 7 Part Numbers
Specifications
Brand
Enclosure Rating
- IP67
Frequency Band
- UHF (860 to 960 MHz)
Read Range
Communication Interface
- Ethernet
- PROFINET
- PROFIBUS DP
- EtherCAT
- Serial RS-232, RS-422
- DeviceNet
- USB
- CAN
- CANopen
