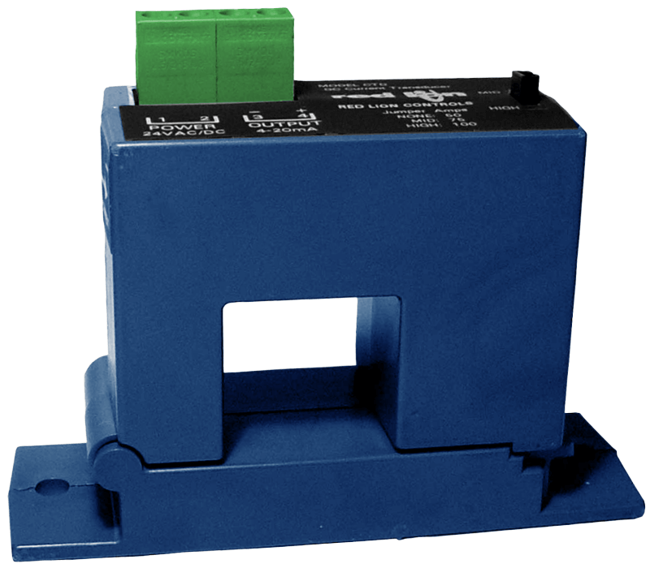

Model CTD DC Current Transducer
Brand: Red Lion ControlsCTD Transducer combines a Hall Effect sensor and a signal conditioner into a single package.
This provides higher accuracy, lower wiring costs, easier installation and saves valuable panel space.
The CTD has jumper selectable current input ranges and industry standard 4-20 mA output with a split-core case.
Features- Three jumper selectable input ranges
- Output is magnetically isolated from the input
- Internal power regulation
- Split core case for easy installation
Specifications
Brand
Accuracy
- 1 % of Full Scale
Approvals & Certifications
- UL 94V-0
Consumption
- Power Consumption: 2 VA
Current
- 0 to 100 A
- 0 to 50 A
- 0 to 75 A
Electrical Connectors
- 12 to 22 AWG Solid or Stranded
- Use up to 14 AWG Copper Wire & Tighten Terminals
Enclosure, Body Material
- Thermoplastic
Humidity
- 0 to 95 % RH, Non-Condensing
Isolation
- 3 kV (Monitored Line to Output)
Linearity
- 0.75 % of Full Scale
Load
- 650 ohms
Operating Temperature
- -20° to 50° C (-4° to 122° F)
Output
- 4-20 mA (23 mA Limit)
Power Supply
- 22-26 Vac/dc
Repeatability
- 1 % of Full Scale
Response Time
- To 90 % of Step Change 100 ms
Torque
- Output Wiring: 4 in/lb
