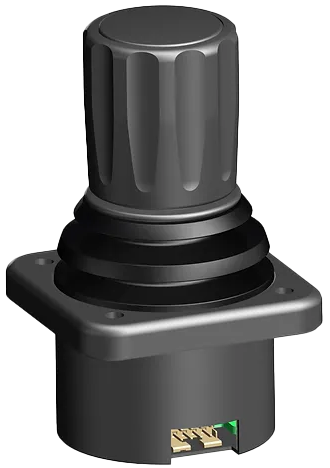

SK315 Joystick
Brand: GT Controls LLCCompact and durable multi-axis joysticks, perfectly made for rugged remote controls, industrial machines, electric vehicles, medical equipment or your particular application.
It comes with a low height to remain below the protection rail of most remote controls or integrated panels, but with a large enough knob to operate comfortably with gloves.
For maximum safety - all axes are available with redundant output signals.
The joysticks can be equipped with a push button and is also available with our friction brake feature.
In addition to our many standard options, we also offer the SK315 as a custom solution for your control needs.
Features- Hall Effect or Conductive Plastic Technology
- Single or Dual Redundancy
- Up to 3 Axis
- Sell-centering
- Push Button
- Analog or Digital Outputs
- Operator Present Sensors
Specifications
Brand
Electrical Functions
- Proportional / Analog
- Digital or Both Combined
- Redundant, Dual Redundant Signals
Technology
- Hall Effect Sensors
- Conductive Plastic CP
Operating Voltage
- 5V for Hall and 30V for CP
Ø Housing
- 42 mm /1.65”
Installation Depth
- 25 mm / 0.98”
Mounting
- 4 x M4 screws 35x35 mm
- Top or bottom mounted
- Sealed flange 50x50 mm
Mechanical Functions
- Self-centering
Operation Range
- ± 20°
Durability
- More than 3 Mio. cycles
Connection
- Cable assembly, connector or customer specific
Temperature Range
- -30º...+80ºC
- -22º...+176ºF
Versions
- Up to 3 axes available
- Optional push button
- Optional friction
Safety Standards
- IP 65 / NEMA 4(X)
- EMC Protected
- Rugged Remote Controls
- Industrial Machines
- Electric Vehicles
- Medical Equipment
