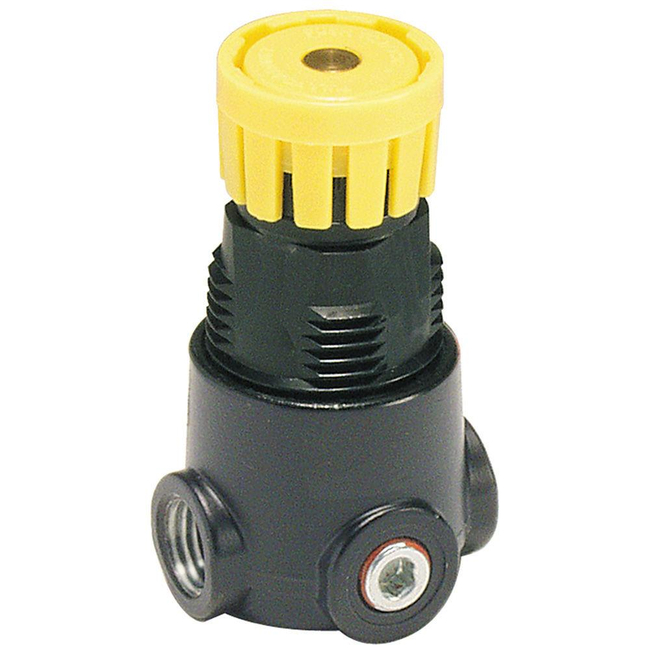

Pressure Regulator - 14R Series (Miniature)
Brand: Parker HannifinParker's 14R is a miniature pressure regulator with an unbalanced poppet design, offering quick response and good pressure regulation.
For low flow and space restricted applications this product can provide a solution that does not sacrifice performance.
The 14R has various options available such as pressure gauge, relieving & non-relieving and pressure range options make this series easy to design to your application.
Features- Unbalanced poppet standard
- Solid control piston with lip seal for extended life
- Non-rising adjusting knob
- Compact, 2.88 inch (73.2mm) high by 1.65 inch (42mm) wide
- Easily serviced
Specifications
Brand
Body Material
- Zinc
Flow Rate (dm3/sec)
- 7
Flow Rate (scfm)
- 15
Gauge Port
- 1/8"
Maximum Inlet Pressure (bar)
- 20
Maximum Inlet Pressure (psig)
- 300
Operating Temperature (°C)
- 0° to +52° / Low Temp: -20° to +52° C
Operating Temperature (°F)
- +32° to +125° F / Low Temp: -4° to +125° F
Port Size
- 1/8", 1/4"
Port Type
- NPT, BSPP, BSPT
Pressure Control Range (bar)
- bar: 0 to 1, 0 to 2, 0 to 4, 0 to 8
Pressure Control Range (psig)
- psig: 1 to 15, 1 to 30, 1 to 60, 2 to 125
Product Type
- Miniature Regulator
Seal Material
- Nitrile
Weight (kg)
- 0.14
Weight (Lbs)
- 0.3
- To Be Used in Combination with Valves and Cylinders
- Used with Air Tools and Compressors
- Positioning
- Cutting
- Machining
- Pick and Place
- Packaging and Wrapping Systems
