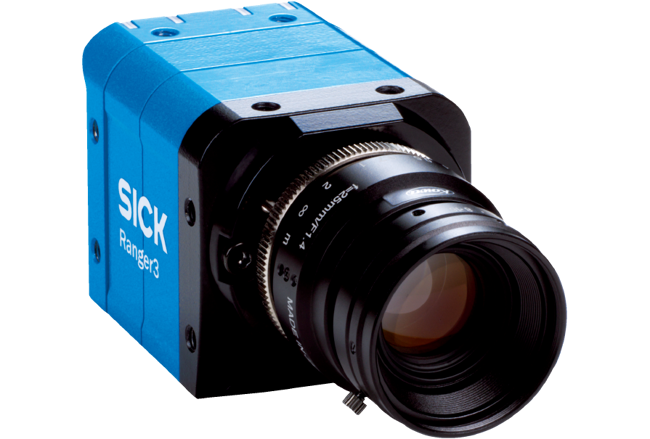

3D Machine Vision, Ranger3.png

Ranger3 3D Machine Vision

Brand: Sick AG
Add Product to My Catalog

Highly accurate and with an unmatched measurement speed, the next generation Ranger3 streaming cameras can be configured for a wider range of needs. Powered by our unique 3D sensor tailored for demanding vision applications, Ranger3 will serve as a key component in inspection systems worldwide.

The camera extracts the true 3D shape of an object, regardless of its contrast or color and as a result, improves quality for a multitude of products. Cost-effective integration is guaranteed through GigE Vision and GenICam compliance. Ranger3 offers big 3D performance in a small housing.

At a glance
  • CMOS sensor from SICK with ROCC technology for superior 3D performance
  • Processing of up to 15.4 gigapixels/s.
  • Full-format 3D profile at 7 kHz
  • Sensor resolution: Up to 2,560 x 832 px
  • GigE Vision and GenICam compliant
  • 3D, reflective, and scattered light measurement in one device
  • Industrial housing, optional IP65/67 enclosure rating
Features
  • Unique CMOS sensor enables fast 3D measurement speed for increased throughput
  • Reliable and accurate measurements on dark and bright surfaces enable flexible production - an enabler for Industry 4.0
  • High light sensitivity allows 3D inspection without higher laser power
  • Accurate shape, volume and position measurements for a wide range of objects improving product quality
  • Standardized software integration with GigE Vision and GenICam
  • Easy mechanical integration thanks to a compact housing, the ProFlex-Front, industrial connectors and 4Dpro accessories

1 - 3 of 3 Part Numbers
1091560
1091560
  • Sub Product Family - Ranger3-60
  • Type - V3DR3-60NE31111
1105757
1105757
  • Sub Product Family - Ranger3-40
  • Type - V3DR3-40NE31111
1109564
1109564
  • Sub Product Family - Ranger3-30
  • Scan/Frame Rate - 20,000 3D Profiles/s, in AOI; 1,500 3D Profiles/s, Full Format
  • Type - V3DR3-30NE31111
1 - 3 of 3 Part Numbers

Specifications

Brand

Certifications & Approvals

  • CE
  • EAC

Technology

  • 3D Line Scanning

ScaN/Frame Rate

  • 1,500 3D Profiles/s to 46,000 3D Profiles/s, in AOI, Full Format

Light Source

  • Internal Lighting

Enclosure Rating

  • IP65
  • IP67
  • IP20

Configuration Software

  • Ranger3 Studio

Communication Interface

  • Ethernet, UDP/IP

Sensor Resolution

  • 2,560 x 832 pixels
  • 1,536 x 832 pixels

  • Electronic component and PCB inspection
  • Tire quality control
  • High-speed railway and road surface inspection
  • Dimensioning of tubes in the metal industry
  • Packaging and in-line food quality control
  • Quality inspection and classification in the wood and furniture industry

Documentation

Data Sheets

Product Manuals

Brochure
