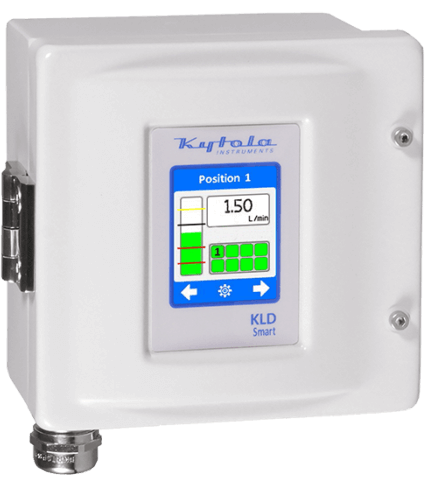

KLD Smart Touchscreen Display
Brand: Kytola Instruments OyKytola KLD Smart local display monitors and displays flow rates and flow alarms.
A local display unit adds up to the comprehensive oil flow monitoring product offering.
The touchscreen interface is easy, simple and fast to use.
The Kytola KLD Smart incorporates latest monitoring technology with an intuitive and easy-to use touchscreen interface.
KLD Smart is compatible with Kytola positive displacement oval gear flow meters and other flow meters with pulse output.
The device can be used as a stand-alone or it can be connected to Kytola monitoring software.
It is also possible to connect KLD Smart to a third-party system.
Kytola’s KLD Smart stands out from the crowd as especially user-friendly. It is very visual.
Alarms and flow rates are visible at a glance.
Any deviations such as low or high flow alarms are indicated with colours.
The current flow rates are always displayed on the main screen in real time.
KLD Smart is a cost-efficient and long-term solution for a variety of industrial applications such as
The KLD display is available as single channel model or a multi-channel version with up to 8 flow measuring points.
Each monitored flow unit has its own screen.
Browsing is easy using the arrow buttons on the touchscreen.
The device has been designed for industrial environments.
KLD Smart endures harsh conditions without compromising reliable operation and usability.
We value versatility.
With this in mind, the KLD Smart is designed to adapt to most industrial customer needs and oil flow measurement applications regardless of size or location.
Features- Flow Measurement
- Totalizer Counter and Batching
- Multiple Flow Units
- Multiple Flow Alarm Levels
- Visible Indication of Alarm Type
Specifications
Brand
Supply Voltage
- 20-30 Vdc
Maximum Supply Current
- 100 mA @ 24 Vdc
- 150 mA @ 24 Vdc
- 350 mA @ 24 Vdc with mA Outputs
Sensor Types
- Kytola Coil
- NAMUR
- NPN
- PNP
Input Frequency
- 0 - 5 kHz
- 0 - 400 Hz
Communication
- Modbus RTU (RS-485)
- Modbus TCP (Ethernet)
Current Output
- 1 pieces
- 4-20 mA
- Active or Passive
- Active
Current Input
- None
- 1 pc, linear, square root, table, custom unit
Relay Output
- 1 pc NC, Max. 48 Vac/dc, 100 mA
Enclosure
- Painted Steel
- Stainless Steel AISI 316
Protection Class
- IP65
Ambient Temperature
- -20° C to +60° C (relative humidity < 85 %, Non-Condensing)
Dimensions
- 100 x 140 x 55 mm
- 150 x 160 x 80 mm
Weight
- 0.7 kg
- 1.5 kg
- Lubrication Oil Flow Monitoring
- Industrial Flow Monitoring
- Process Control
- Batching
