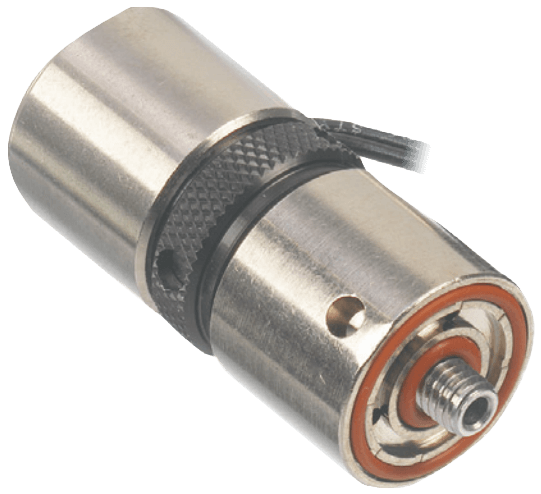

E & EH Series Solenoid Valve
Brand: Gems Sensors, Inc
A 2- or 3-way sub-miniature solenoid valve that delivers faster response times and higher flow rates, the E & EH Series is specifically engineered for air and dry gas applications.
A nickel-plated body and coil housing construction produces a highly durable, corrosion resistant valve.
With a wattage range of 0.65 to 2 the E & EH Series provides versatility for power conserving, high pressure, and high flow applications.
Features- MOPD: 175 PSI (12 Bar)
- Cv Range: 0.018 to 0.070 (Kv Range: 0.015 to 0.060)
- 0.65 Watts or 2 Watts
Specifications
Brand
Applications
- Air Monitoring Systems
- Automated Packaging Equipment
- Medical & Respiratory Healthcare
- Printing Machinery & Sorting Equipment
Electrical - Free Leads
- 24 AWG PVC Leads x 12"
Electrical Connectors
- Encapsulated Coil with 0.110 Spade Terminals
- Tape-Wrapped, Class B, with Lead-wires (12" Long)
Enclosure, Body Material
- Nickel-Plated Brass
Flow Rate
- 0.018 to 0.070 Cv
Maximum Opening Pressure Differential
- psig: 40 to 175 (kPa: 276 to 1,207, bar: 2.7 to 12)
Metric Connection
- Manifold Mount: M5 x 0.8 Threaded Stud
O-Ring Material
- Ethylene Propylene (EPR)
- Nitrile
- Silicone
- Viton
Orifice Size
- 1/32" to 5/64" (0.79 to 1.98 mm)
Power
- 0.65 W
- 2 W
Seat / Seal Material
- Ethylene Propylene (EPR)
- Nitrile
- Silicone
- Viton
Supply Voltage
- 110-240 Vac
- 12-24 Vdc
UNF/UNC Connection
- 10-32 UNF Female-2B Straight Thread Ports
- Manifold Mount: 10-32 UNF Male-2A Threaded Stud
Valve Type
- 2-Way
- 3-Way
- Normally Closed
- Normally Open
- Medical and Respiratory Healthcare
- Printing Machinery and Sorting Equipment
- Automated Packaging Equipment
- Air Monitoring Systems
