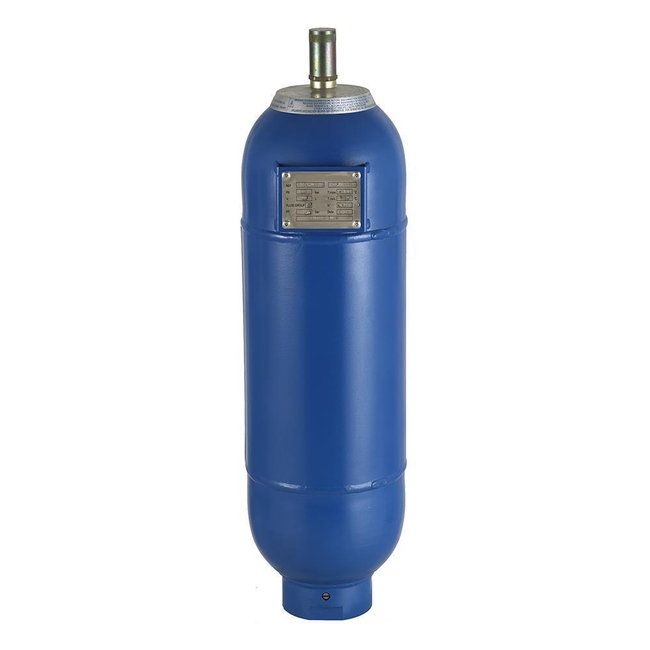

Bladder Accumulator - Low Pressure (EBV Series)
Brand: Parker HannifinThe EBV bladder accumulator offers a reliable and efficient solution for water hammer arrestor, thermal expansion, energy storage and pulsation dampening.
Utilizing comprehensive tools and resources including an applications database, CAD/CAM, finite element analysis, reliability studies and simulation we have optimized the design and performance of the accumulator.
A high volume solution (up to 4000 liters) has been specially developed for energy storage and thermal expansion.
Parker Olaer bladder accumulators are suitable for use in more than 35 countries (all hydraulic accumulators for Europe are CE marked) and they can meet an extensive range of international and industry approvals.
The standard EBV bladder accumulator has a female threaded fluid port or optional flange fluid port with different flange design standards.
Rigorous product testing and continuous product development help to ensure our hydro-pneumatic accumulators operate at optimum efficiency and can perform in the most demanding environments.
Parker accumulator accessories such as safety blocks, charging sets, brackets & clamps, adaptors and flanges, lifting eyes, bladder kits, can aid the safe installation and operation of the accumulators in any hydraulic system.
Parker Olaer have developed very sophisticated simulation software to optimize sizing recommendations for hydraulic accumulators.
Features- Extensive range of international and industry approvals/standards (PED 2014/68/EU, ATEX 2014/34/EU, ASME VIII div 1, SELO, CRN, AS1210, NR13, CUTR, DNV, BV Marine, ABS and GL).
- Suitable for Fluid Groups 1 & 2.
- Available in carbon and stainless steel (304, 316, 316L).
- Rigorous product testing and continuous product development.
- Parker Olaer offers a wealth of product knowledge and experience thus enabling us to provide first class technical support and customer service.
- A large selection of materials and fittings enable us to provide complete low pressure systems to suit every application.
- The EBV bladder accumulator can provide an instantaneous response.
Specifications
Brand
Accessories
- Brackets, Clamps, Lifting Eye, Repair Kits
Approvals & Certifications
- PED 97/23/EC, ATEX, ASME VIII, Div. 1, SELO, CUTR
Elastomer Material
- NBR (Nitrile) Bladder as Standard. We Offer A Wide Range of Materials (e.g. Heavy Duty Nitrile, Hydrin C, Butyl, EPDM, Viton & Others, Please Contact Us for more Options)
Height (mm)
- From 245 to 2905
Markets
- Industrial, Energy, Process & Marine
Maximum Flow Rate (Lpm)
- Up to 3000
Maximum Operating Pressure (bar)
- Up to 80
Maximum Operating Temperature (°C)
- Up to +80° C
Minimum Operating Temperature (°C)
- from -6° C
Port Connection
- G 2", G 3-1/2", M205 x 3
Series
- EBV
Type
- EBV
Valve Size (inch)
- 5/8" 18 UNF Integrated (Typical D), 7/814 UNF Integrated (Typical C), 5/8" 18 UNF (Typical A)
Weight (kg)
- from 1.2 to 400
- Hydraulic Power Units
- Lubrication Systems
- Power Generation
- Energy Transmission & Distribution
- Defence
- Plumbing
- Refrigeration
- Heating
