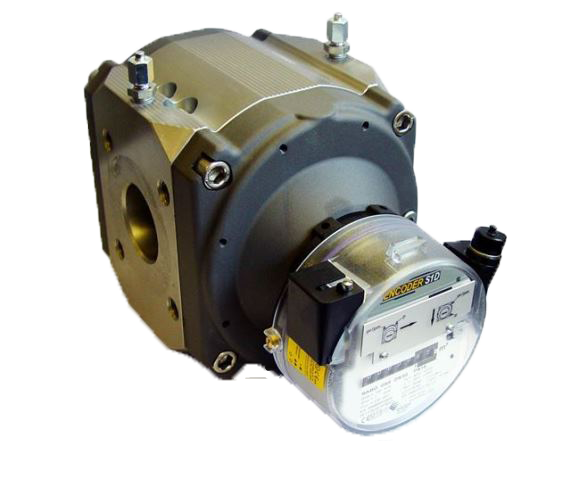

Elster® Rotary Gas Meter
Brand: Honeywell Process SolutionsThe Elster Rotary Gas meter utilizes the rotary-type positive displacement principle of operation which makes volumetric measurements by displacing finite volumes of gas.
The positive displacement occurs within a cavity formed between the meter’s internal housing and its rotating impellers.
The counter-rotating “figure-8” impellers turn as a result of pressure drop across the meter’s inlet and outlet created as downstream gas is consumed.
The rotating impellers separate the flowing gas into small, finite, volumes and are counted using a mechanical index.
Features- 4 Meter Sizes
- 3,500 to 14,000 acfh Maximum Capacity
- 2”, 3” And 4” ANSI 125/150 Flanged Connections
- High Rangeability Across the Flow Range
- Low Pressure Drop
- Differential Pressure Taps on Inlet And Outlet with Pete’S Plugs®
- Non-Lubricated and Non-Resettable Index
- End View, Rotatable Index
- Heavy Duty, Compact Design
- High Impact-Resistant, Ultraviolet Stabilized Index Cover
- Anodized Extruded Aluminum Body And Impellers
- Anodized Forged Aluminum Case Covers
- Permanently Lubricated Bearings
- 10ft3 Output on All Meter Sizes
