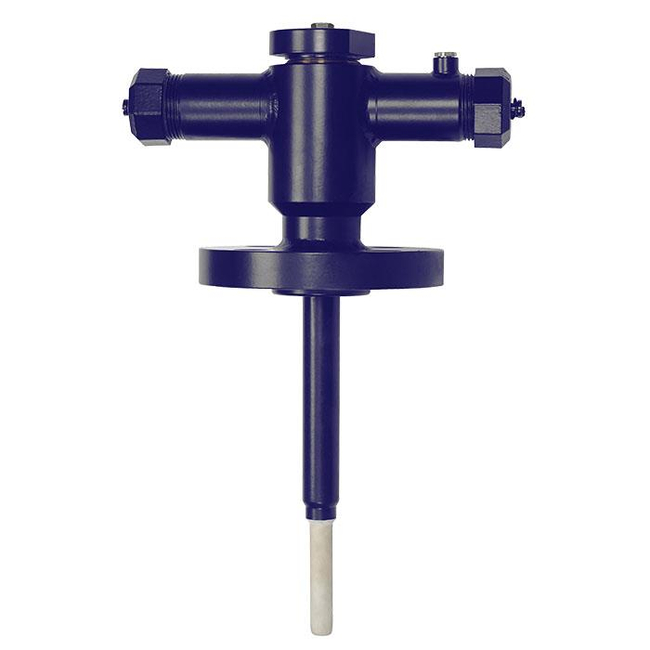

Sapphire-Design Thermocouple - TC84
Brand: WIKA Alexander Wiegand SE & Co. KGThis high-temperature thermocouple with a gas-tight sapphire protection tube has been specifically developed for use in gas reactors. Through the monocrystalline structure, the sapphire protects the precious metal of the thermocouple from poisonous toxic media in the aggressive atmosphere of the gasification reactor.
Features- 3 times longer service life in comparison to purely ceramic protection tubes due to the monocrystalline structure of the sapphire sensor.
- High process safety with processes up to 1,700 °C (3,092 °F) and 65 bar (943 psi).
- Reduction of unplanned downtime.
- Increased safety through double sealing system against escape of toxic media.
- Cost savings through the elimination of a purge system and the repairability of the sensor.
Specifications
Certifications & Approvals
- CE
- IECEx
- EAC
- GOST
- BelGIM
- UkrSEPRO
Temperature Range
- Up to 1,700° C (2,912° F)
Sensor Type
- Type S, R, B
Process Connection
- ASME : 1-1/2" to 4"
- EN 1092-1: DN 40 to DN 100
Material of Construction
- Connection housing: 1.4541, 1.5415, 1.7335, 1.7380, F11, F22, SS321
- Outer Protection Tube: Ceramic
- Gasification reactors
- GtL reactors (Gas-to-Liquids)
- Sulphur recovery plants
