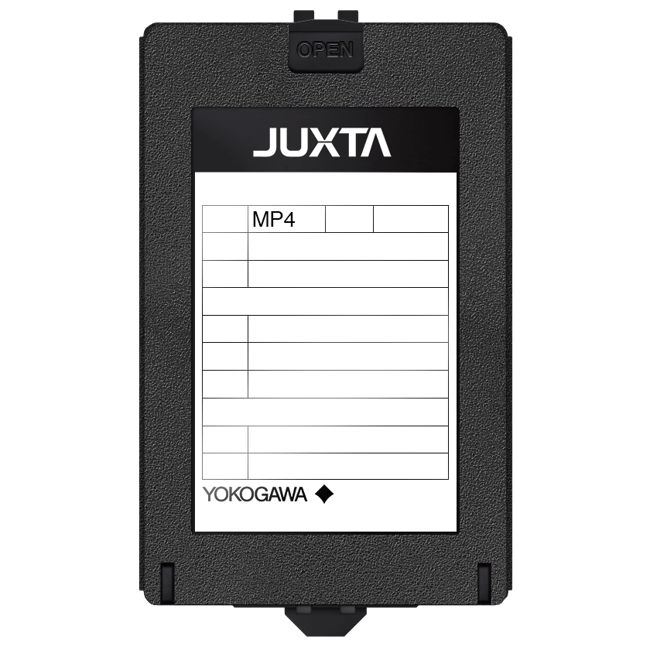

MP4 Pulse Rate Converter
Brand: Yokogawa Electric Corporation
This plug-in type pulse rate converter receives contact pulse, voltage pulse or current pulse from the field and converts it into isolated transistor contact pulse or dry contact AC switch-pulse after calculation by setup pulse rate.
Features- 4 Ports Isolation (Input, Output, Power Supply, Ground)
- Can Specify Pulse Generator Power Supply to Supply 12 Vdc or 24 Vdc
- Versatile Power Supply (100 V / 200 Vac, 24 V / 100 Vdc)
- If it Receives Chattering Signals, internal Input Filter (10 Milliseconds) Requirement Can be Selected through Switch
- Selection of Load Resistance and Setting Input Filter can be Made Through Front Face
- 2,000 Vac High Voltage Proof
Specifications
Current
- 40-60 mA - Current Control Circuit
Dissipation
- 20 mA at 110 Vdc - Current Dissipation
- 6 VA at 100 Vac - Power Dissipation
- 9 VA at 200 Vac - Power Dissipation
- 90 mA at 24 Vdc - Current Dissipation
Electrical Connectors
- M3.5 Screw Terminal
Electrical Rating
- 15 mA at 15 Vdc or more - Input Contact Rating
Enclosure, Body Material
- ABS Plastic
Frequency
- 0 to 10 kHz - Input Frequency
- 0 to 16.6 Hz - Output Frequency
Humidity
- 5 to 90 % RH, Non-Condensing
Input
- 50 Vdc or Less - Max.
Insulation Resistance
- Over 100 MΩ at 500 Vdc - between Input, Output, Power Supply, Ground
Load
- 200 mA at 100 Vac - Max.
- 200 mA at 30 Vdc - Max.
Mounting
- DIN Rail Mounting
- Wall Mounted
Output Format
- Dry Contact AC Switch
- Open Collector
Power Supply
- 100/200 Vac - Vesatile Power Supply
- 12 Vdc / 30 mA, ± 10 % - Pulse Generator Power Supply
- 170-264 Vac, 47 to 63 Hz - Power Supply Voltage
- 24 Vdc / 30 mA, ± 10 % - Pulse Generator Power Supply
- 24/100 Vdc - Vesatile Power Supply
- 85-132 Vac, 47 to 63 Hz - Power Supply Voltage
- 85-150 Vdc - Power Supply Voltage
Pulse Range
- 0.0001 to 0.9999 - Pulse Rate Setting
- 3 ms or more - Pulse Width
- 30 ms ± 3 ms - Output on Pulse Width
- Minimum 40 µs or Both on Time & Off Time - Input Pulse Width
Resistance
- 1 Kiloohm - Internal Load Resistance
- 100 kΩ or more - Dry Voltage Contact (off Input)
- 15 kΩ or more - Contact or Voltage Pulse Input Resistance
- 200 ohms - Internal Load Resistance
- 200 ohms or Less - Dry Voltage Contact (On Input)
- 500 ohms - Internal Load Resistance
Supply Voltage
- -1 to 8 Vdc - Low Level Voltage Pulse
- 2 V or more - Voltage Pulse Amplitude
- 2,000 Vac/minute - Withstand Voltage between Input, Output, Power Supply, Ground
- 2-50 Vdc - High Level Voltage Pulse
Temperature Range
- 0° to 50° C (32° to 122° F)
Time Constant
- 10 ms - Input Filter
