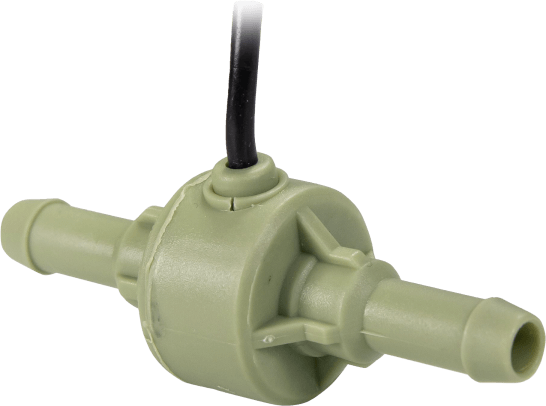

DFS PVDF Green Flowmeter
Brand: Equflow BVThe Digiflow DFS-2/3 flowmeters have specifically been developed for use in wide range of applications, such as (fine) chemicals, water treatment, agriculture, food processing, paper processing and other end-use/OEM applications.
This flowmeter is suitable for various mid- to long-terms use. The flowmeter design makes it an integral component of systems designed for accurate monitoring or flow control of liquids.
Features- Suitable for flows ranging from 0.07 – 25 L/min (.02 – 6.6 GPM)
- Accuracy within 0.5%
- Wetted parts and housing of high quality polymers
- Low pressure drops
- Ultra-low friction bearings yielding long life
- High chemical resistance
- Turn down ratios of up 64:1
- Infrared signal detection
- Resolution of up to 65,000 pulses/L (227,100/gallon)
Specifications
Brand
Media
- liquid
Flow Range
- 0.07 - 2.0 L/min
Accuracy
- ± 0.5 % of Reading
Linearity Deviation
- 0.5%
Repeatability
- < 0.15 %
Average K-factor
- 65,000 pulses/L
Operational Temperature Range
- -20° to +85° C
Static Temperature Range
- -20° to +130° C
Viscosity Range
- 0.8 - 10 cSt
Maximum Pressure
- 50 bar
Pressure Drop
- 0.2 bar @ 1 L/m
Power Supply
- 5 Vdc, 12 - 36 mAmp
Output Signal
- 5 Vdc square wave
Rotor Assembly Material
- PVDF
Housing Material
- PVDF
O-rings Material
- Viton
Electrical Lead
- 1 m
Dimensions in Length
- 63.3 mm
Dimensions in Diameter
- 21 mm
Connections
- 7 mm hose barb
- Beverages
- Fuels
- Water
- Monitoring of dosing operations (volume) control is also possible.
