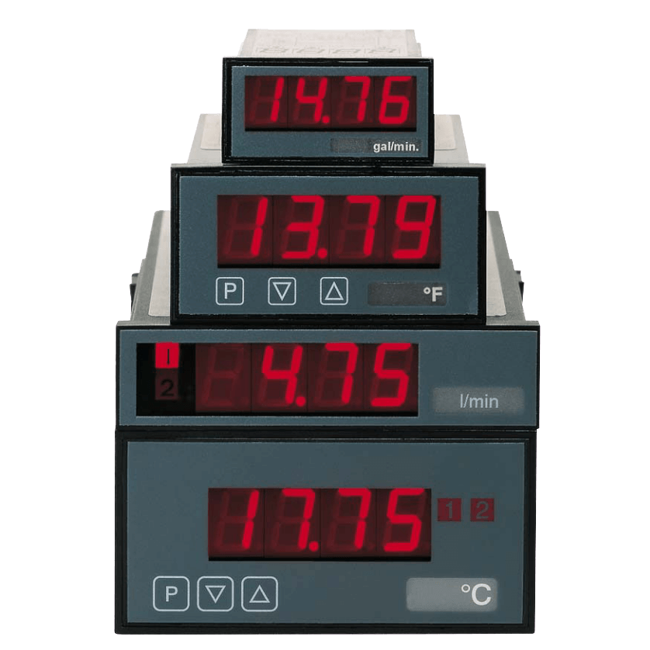

DAG-2 Processor-Based Digital Indicator
Brand: KOBOLD Instruments, IncProcessor-based digital indicating units for measuring frequency, temperature, current and voltage. The measured input is calibrated at the factory. The scale of the unit may be altered with replaceable labels.
The following parameters may be set by the customer from a tactile keypad:
- Desired indicated value and offset
- Position of point, display time, measurement frequency
- Full scale value and offset of Analog output
- Switch point, hysteresis, steady state current/load current
The units may be provided with the following:
- 1 open collector /1 changeover contact (for units without Analog output)
- Minimum/maximum memory (not for frequency)
- Output: 0-20 mA, 4-20 mA, 0-10 V (optional)
Specifications
Brand
Accuracy
- ± 0.04 % of Display - Frequency
- ± 0.2 % of Measured Value, ± 1-Digit
- ± 0.2 % of Measured Value, ± 1-Digit - Current & Voltage
- ± 1° C (± 1.8° F), ± 1-Digit - Thermocouples
Dimensions
- 2.58" x 1.3" (68 x 33 mm) - Cut-Out Dimensions
- 2.83" x 1.42" x 4.53" (72 x 36 x 115 mm) with Pluggable Option
Display
- 7-Segment Red LED, 14 mm High
- Display Rate: 0.2 to 10 seconds, Adjustable
Enclosure, Body Material
- PC/ABS-Blend, Colour Black
Environmental Protection
- IP00 - Terminal
- IP40 - Front (Standard)
- IP65 - Front (Option)
Input Power
- Maximum
Load Impedance
- 500 ohms
Mounting
- Latching Snap-On Fixing
Operating Temperature
- 0° to 60° C (32° to 140° F)
Output
- 0-20 mA
- 4-20 mA
Relay Output
- 1 Changeover Contact
- 230 Vac / 2 A - 120 Vdc / 0.5 A - Max.
Resolution
- 0 to 9999
- 0.1° C
- 1° C
Sensor / Probe Type
- Pt100 (-100 to 600° C) (-148 to 1,112° F)
- Thermocouples
Storage Temperature
- -20° to 80° C (-4° to 176° F)
Supply Voltage
- 5-40 Vdc At, Max.
