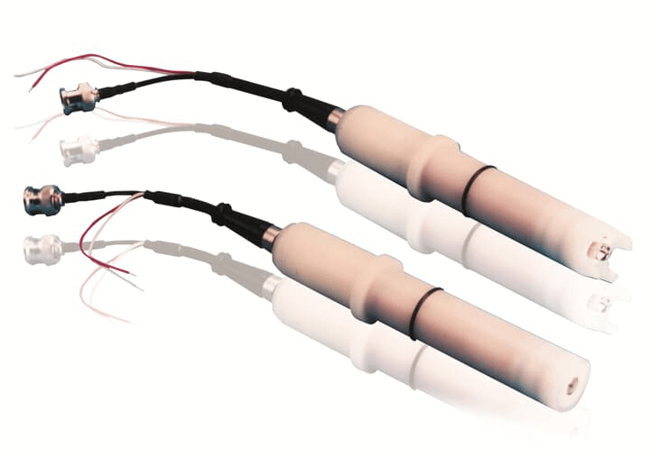

TB561 /TBX561 pH/Redox (ORP) Industrial Sterilizable Sensor
Brand: ABB GroupA well deserved reputation for ruggedness, longevity and accuracy hallmark the TBX561 series industrial hot-tap retractable pH / redox sensors.
The sensors are easily applied to most industrial measurement needs.
They are renowned for their ability to outperform conventional sensors in the industries' toughest process applications.
Solid-state Next Step™ reference technology is the foundation for all TB(X)5 Series electrodes.
The totally solid inner reference chamber is charged with potassium chloride (KCl).
This non-liquid reference all but eliminates poisoning, plugging and pumping problems that plague conventional liquid, slurry and gel designs.
Features- Next Step™ Solid State reference
- eliminates poisoning, pumping and plugging
- Advantage™ series with solution ground rod
- permits continuous sensor diagnostics
- Comprehensive selection of measuring electrodes
- sensors designed to suit all application requirements
- Combination style construction
- measuring, reference and temperature elements, all in one compact body
- Insertion, submersion, flow-through and hot-tap
- increases flexibility of installation
- Operating temperatures up to 140° C (284° F)
- the highest glass temperature limit on the market
- Operating pressures up to 21 bar (300 psi) and higher
- the highest pressure limit on the market
Specifications
Brand
Maximum Pressure
- 17 bar (250 psi)
Maximum Temperature
- 140° C (284° F)
Insertion Length
- 100 mm
Material of Construction
- Junction: Wood or PTFE
Enclosure / Body Material
- Electrode Body: Kynar (PVDF) as Standard
- Batch processing with steam or chemical sterilization,
- Fermenters
- Glass-lined reactors
- Pharmaceuticals
- Food and beverage
